KSC523G

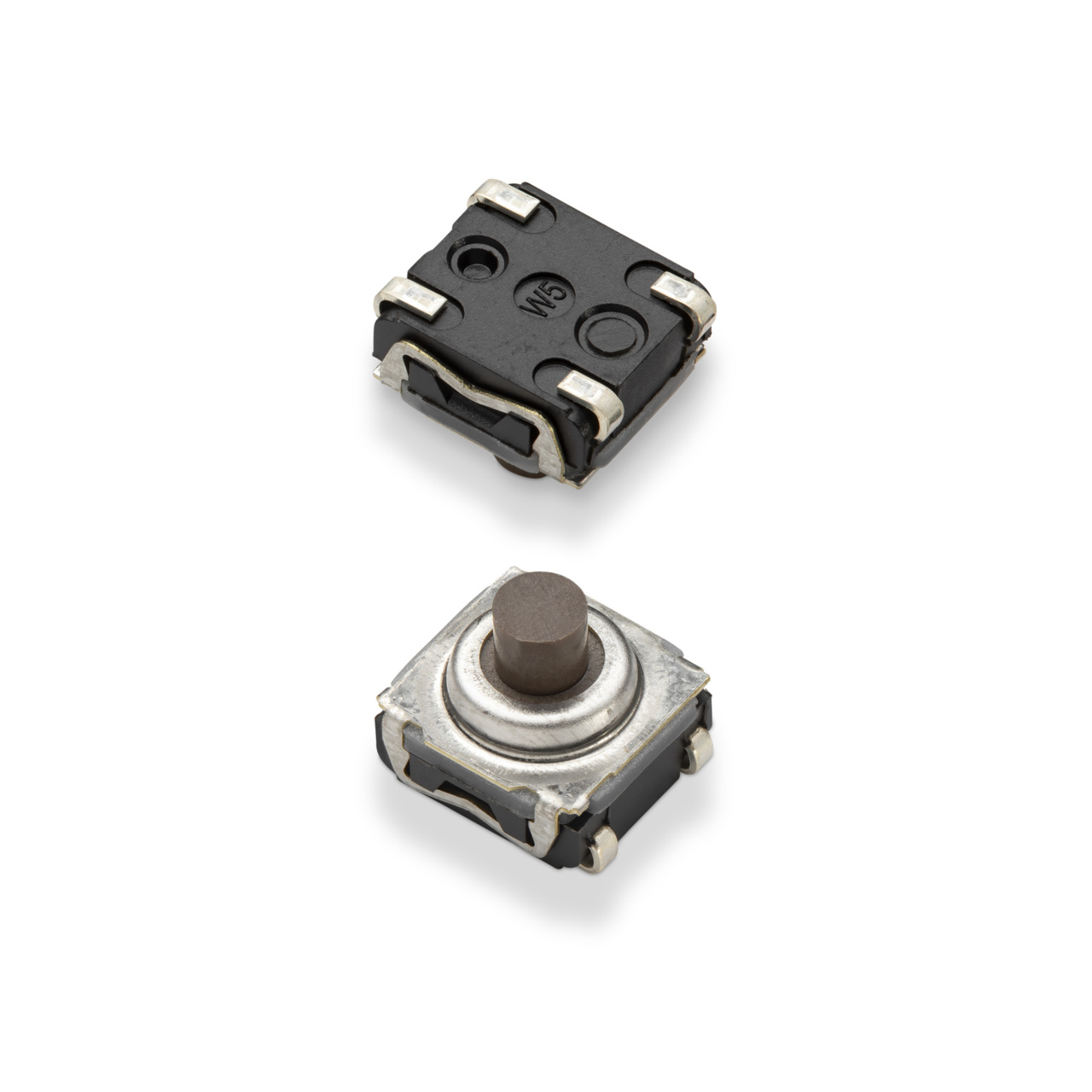

KSC523G ROHS | Series: KSC5
The KSC5 series tact switches with rocker option for SMT are designed to be smaller and more flexible than many other switch technologies. They are used mostly in industrial, consumer, and automotive applications, give users a positive adaptable tactile feeling and are IP50 rated, 5.6mm hard actuator switches.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Operating Force | Min 1.5 N / Nominal 2 N / Max 2.5 N |
Electrical Travel | Min 0.1 mm / Nominal 0.25 mm / Max 0.4 mm |
Mechanical Life Cycles | 100000 |
Ingress Protection | IP 50 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 5.6 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | G |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Positive adaptable tactile feeling
- Hard actuator 5.6mm high
- IP50
KSC523G Applications
- Industrial electronics
- Consumer products
- Automotive
KSC523G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y31C23666FPROHS | KSC523G ROHS | View More |
