KSC633G
KSC633G LFG | Series: KSC6

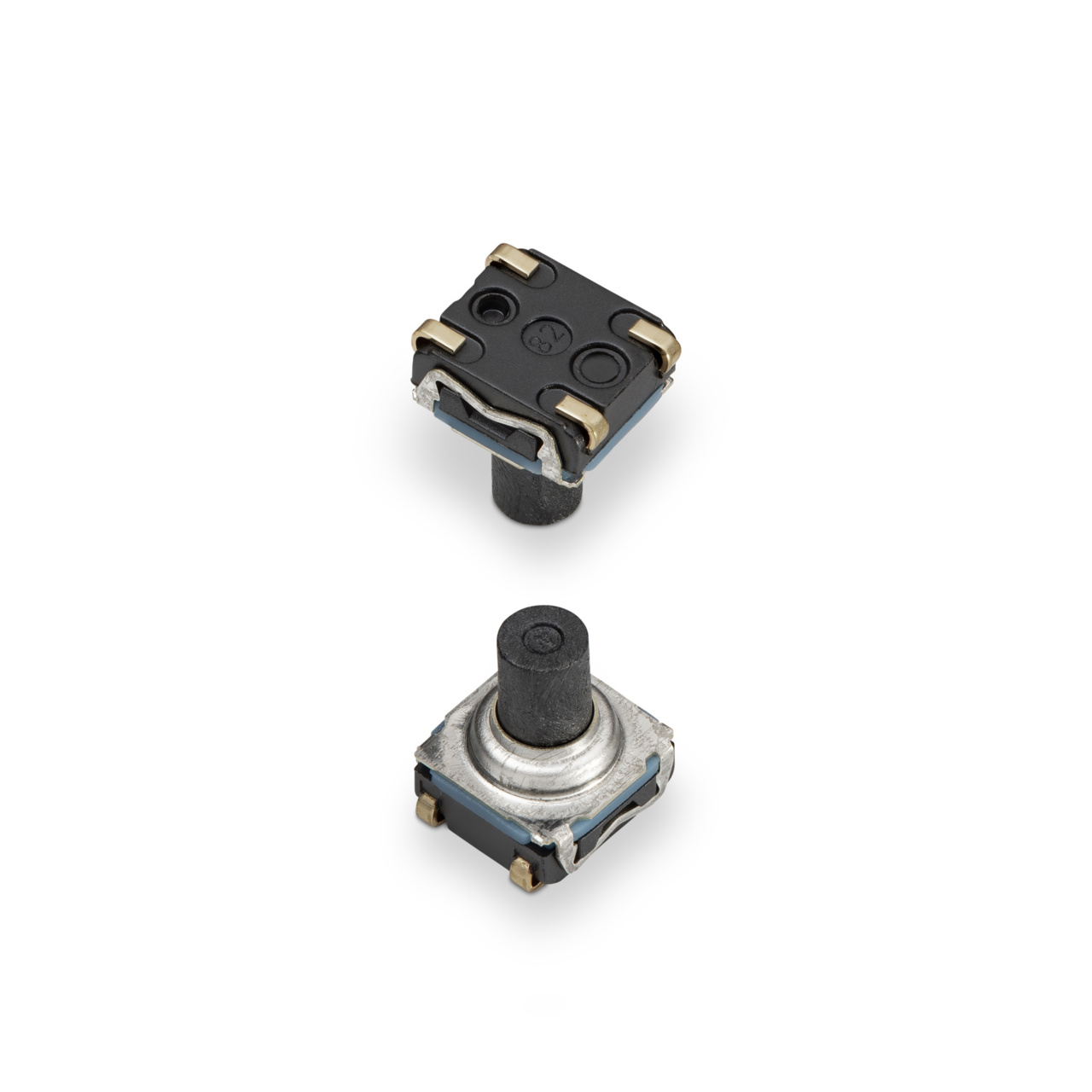

The KSC6 series of sealed tactile switches for SMT are IP67 rated, 7.7 mm high momentary action tactile switches, featuring a hard actuator. The switches are available with a variety of operating forces and have an operating life of 300,000 cycles. The KSC6 series are designed to give users a positive adaptable tactile feeling, perfect for industrial electronics, consumer products, and automotive applications.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Operating Force | Min 1.9 N / Nominal 2.55 N / Max 3.2 N |
Electrical Travel | Min 0.2 mm / Nominal 0.4 mm / Max 0.6 mm |
Mechanical Life Cycles | 300000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 7.7 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | G |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Positive adaptable tactile feeling
- Hard actuator 7.7mm high
- IP67
- RoHS and REACH compliant
- J and G terminations
- Compatible with lead free reflow soldering process of SMT devices
KSC633G Applications
- Industrial electronics
- Consumer products
- Automotive
- Transportation
- Medical
