KSFI0M81270SH
KSFI0M812 70 SH LFS | Series: KSF and KSFI

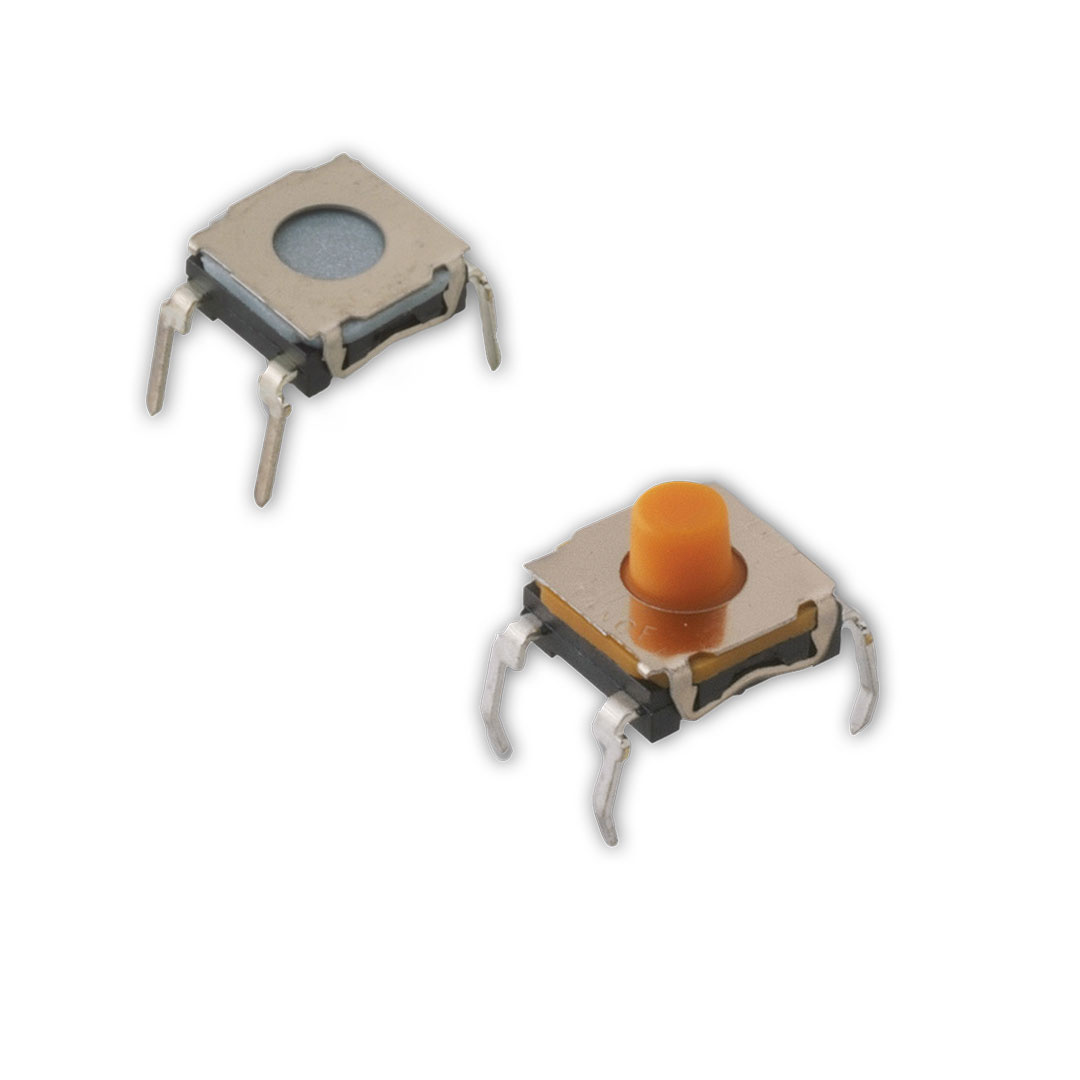

The KSF & KSFI series soft actuated tactile switch features a top and side actuated design with a sealed front end. The switch’s inherently small size and flexibility make it ideal for low profile keyboards, automotive interfaces and industrial control applications.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 3.1 N / Nominal 4.15 N / Max 5.2 N |
Electrical Travel | Min 0.75 mm / Nominal 1 mm / Max 1.25 mm |
Mechanical Life Cycles | 100000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 5.1 |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Terminals Complementary Information | M |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Soft actuated switch
- Sealed front end
- Top and side actuated
KSFI0M81270SH Applications
- Low profile keyboards
- Automotive interfaces
