KSR212G
KSR212G LFS | Series: KSR

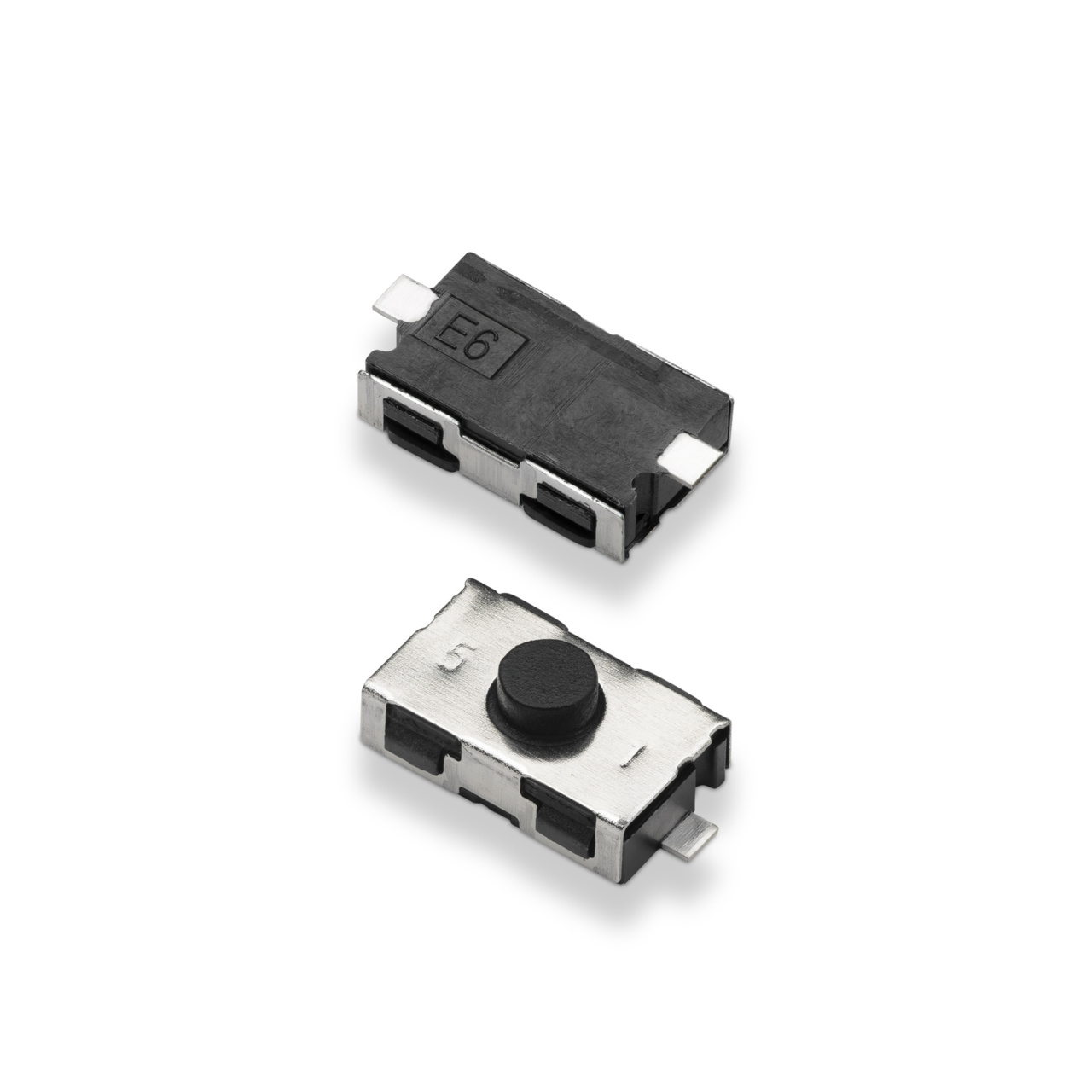

The KSR series subminiature tact switch for SMT has 4 actuation forces and is an N.O. (normally open) and N.C. (normally closed) switch. With detect type available, The KSR series is ideal for industrial, medical, and automotive applications that need emergency stop functionality should accidents occur.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1.5 N / Nominal 1.85 N / Max 2.2 N |
Electrical Travel | Min 0.1 mm / Nominal 0.25 mm / Max 0.4 mm |
Mechanical Life Cycles | 200000 |
Ingress Protection | IP 40 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 2.5 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 4 actuation forces
- G terminations
- N.O. and N.C.
- Detect type available
- Rubber actuator
- RoHS compliant and compatible
KSR212G Applications
- Transportation
- Medical equipment
- Industrial electronics
- Smart meters
KSR212G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y35A21210FPLFS | KSR212G LFS | View More |
