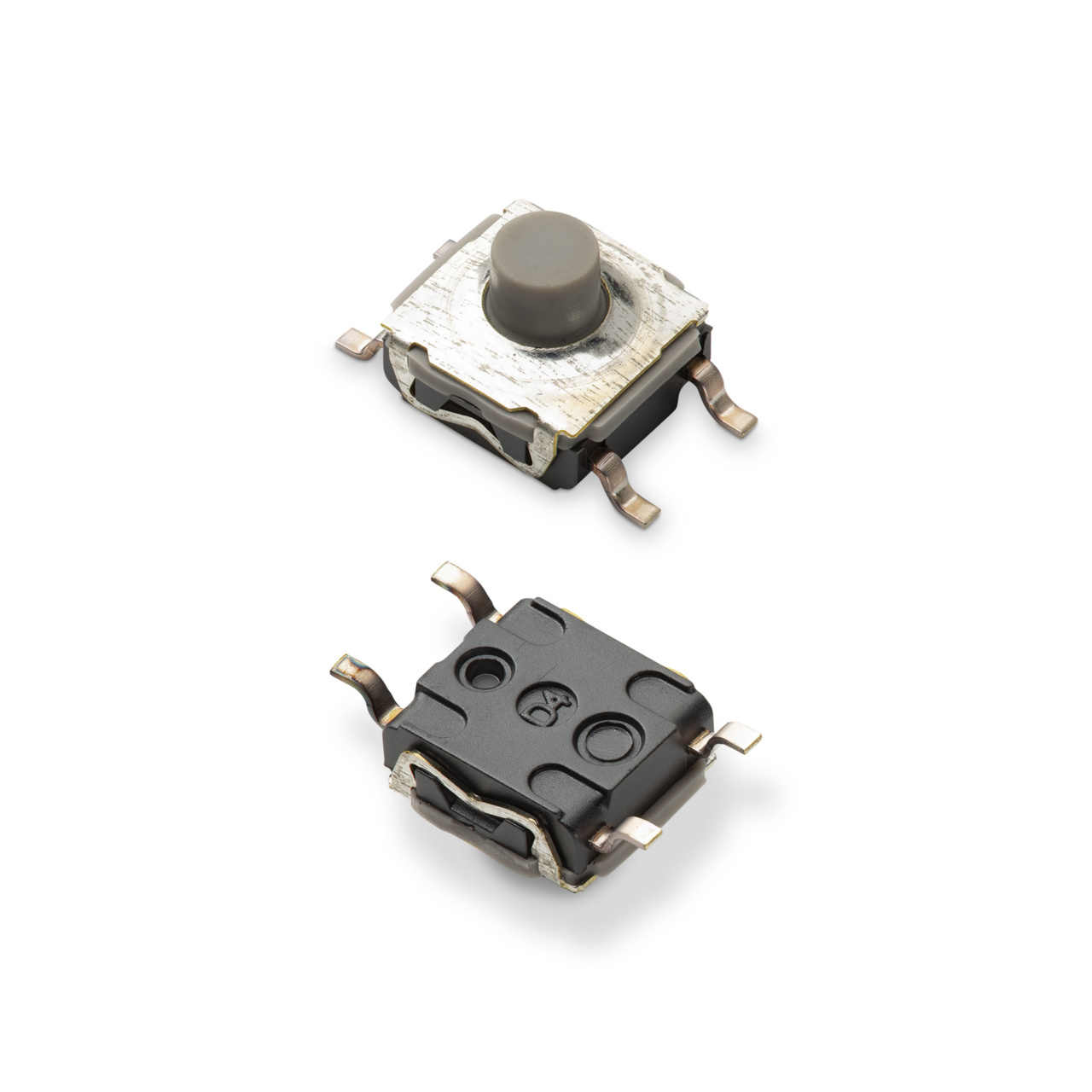

KST243J
KST243J LFG | Series: KST
The KST series is an IP40 rated seal switch, and is ideal for car dashboards and front panel applications. KST also has a contact rating of 10mA (gold) and 50mA (silver), features a rubber actuator and is compatible with pick and place machines.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 2.45 N / Nominal 3.5 N / Max 4.55 N |
Electrical Travel | Min 1.1 mm / Nominal 1.35 mm / Max 1.6 mm |
Mechanical Life Cycles | 100000 |
Ingress Protection | IP 40 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 5 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | J |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
- Rubber actuator
- Silver contact material
- J or G terminals
- Compatible with pick and place machines
- IP40 sealed
- RoHS compliant and compatible
KST243J Applications
- Front panels
- Automotive dashboards
- Telephone set
- Instrumentation
KST243J Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y48A43211FPLFG | KST243J LFG | View More |
