KXT321

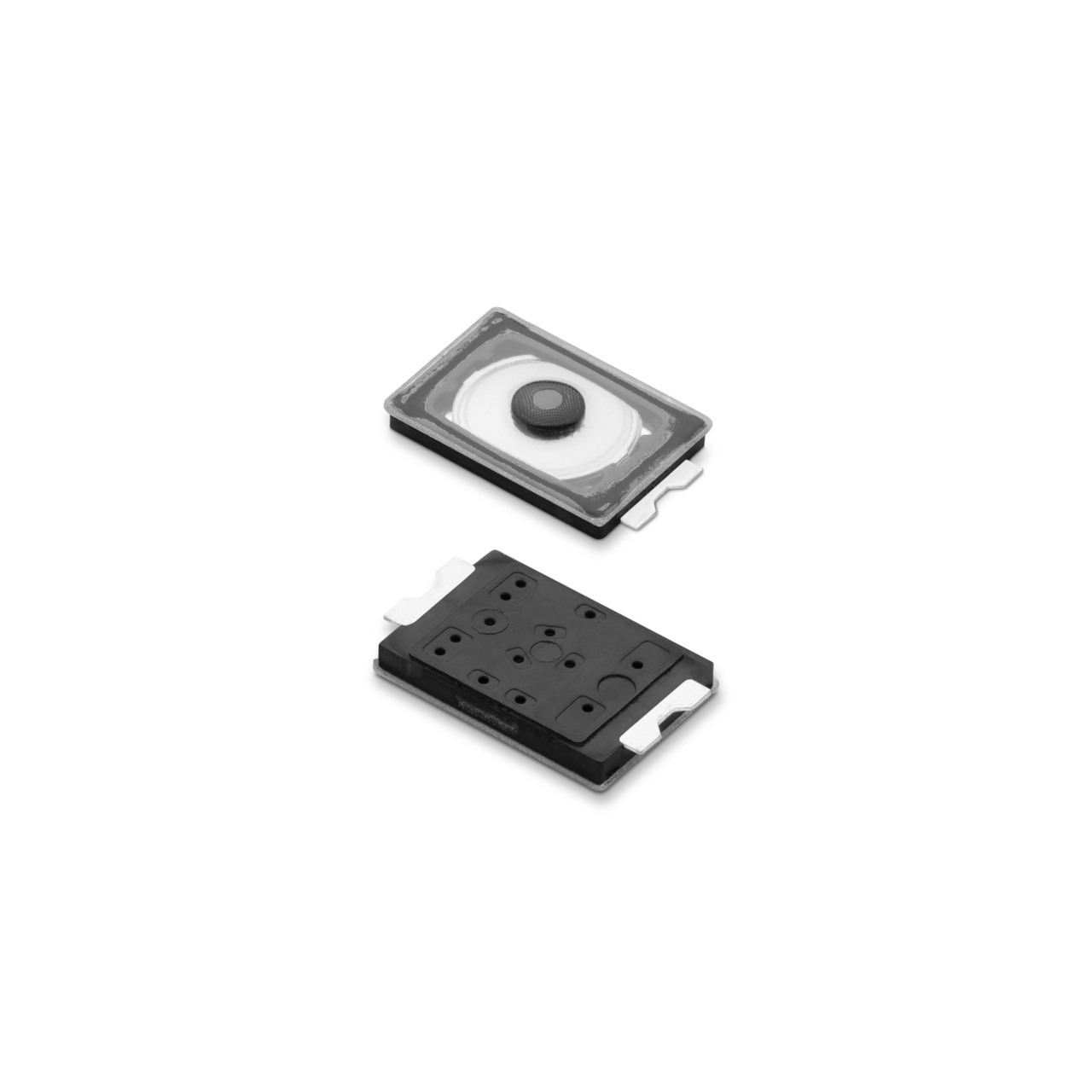

KXT 321 LHS | Series: KXT3
The KXT3 series ultra-low profile top actuated tactile is a reliable and long-lasting switch built to meet the specific needs of engineers creating the next generation of devices, including in-ear headphones and earbuds, wearable electronics and hearing aids. The switch has a 3.0 x 2.0 mm footprint, 0.6 mm thickness and high number of cycles.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 5 mA |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 N |
Electrical Travel | Min 0.08 mm / Nominal 0.13 mm / Max 0.18 mm |
Mechanical Life Cycles | 300000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 5 Volt / Max 15 Volt |
Height | 0.6 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
- Small footprint 3.0 x 2.0 mm
- 0.6 mm thickness
- High number of cycles
KXT321 Applications
- Wearable electronics
- In-Ear headphones, Earbuds
- Mobile Phones
- Portable Electronics
- Hearing Aids
KXT321 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y25D32110FP | KXT 321 LHS | View More |
