PTS125SK12-2

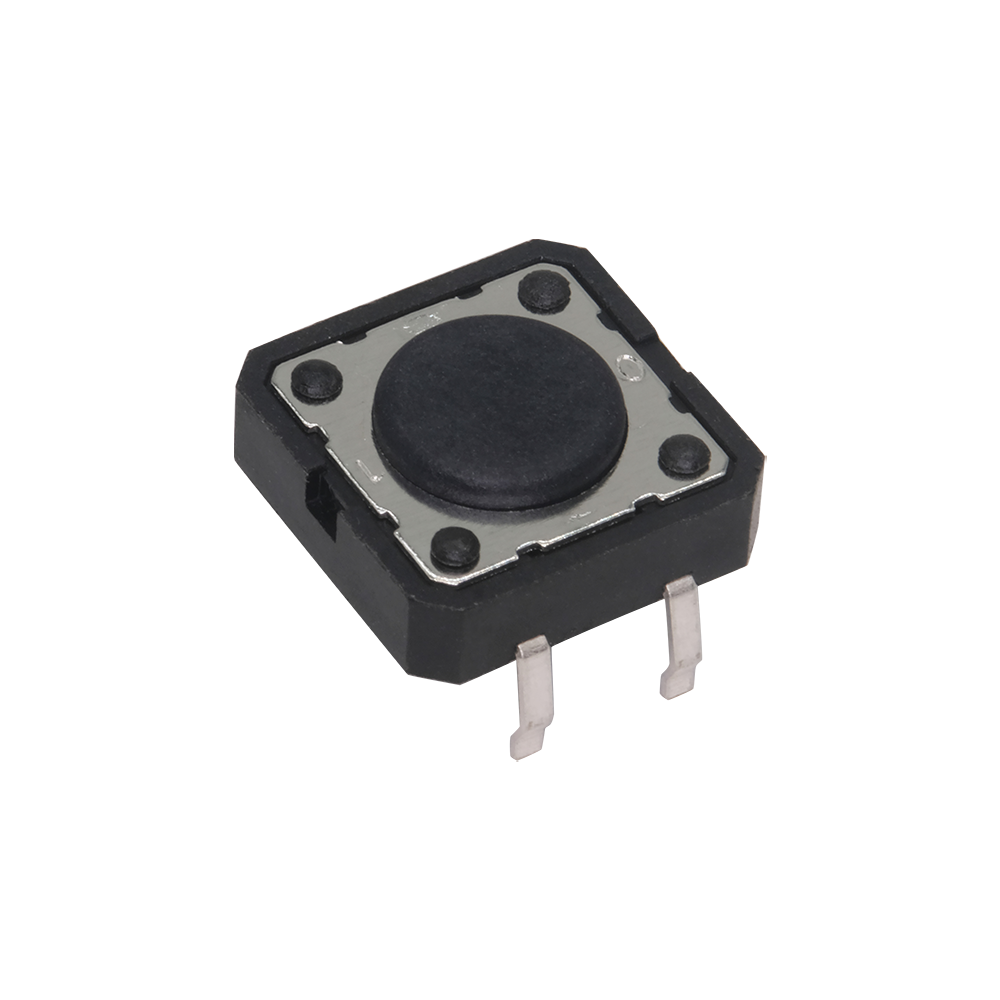

PTS125SK12-2 LFS | Series: PTS125
The PTS125 series 12mm tactile switches are most often seen used in industrial, consumer products, instrumentation, and computing equipment. Available in various heights with a snap-fit actuator option and THT and SMT terminations, PTS125 tactile switch is long-lasting and highly responsive.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 2 N / Nominal 2.5 N / Max 3 NMin 200 gf / Nominal 250 gf / Max 300 gf |
Mechanical Life Cycles | 200000 |
Electrical Life Cycles | 200000 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Pin in paste |
Terminals Plating | Lead free silver |
Terminals Complementary Information | THT |
Activation Orientation | Top actuated |
- THT and SMT terminations
- Various heights
- Snap fit actuator option
PTS125SK12-2 Applications
- Consumer products
- Instrumentation
- Computer products
- Industrial
PTS125SK12-2 Resources
