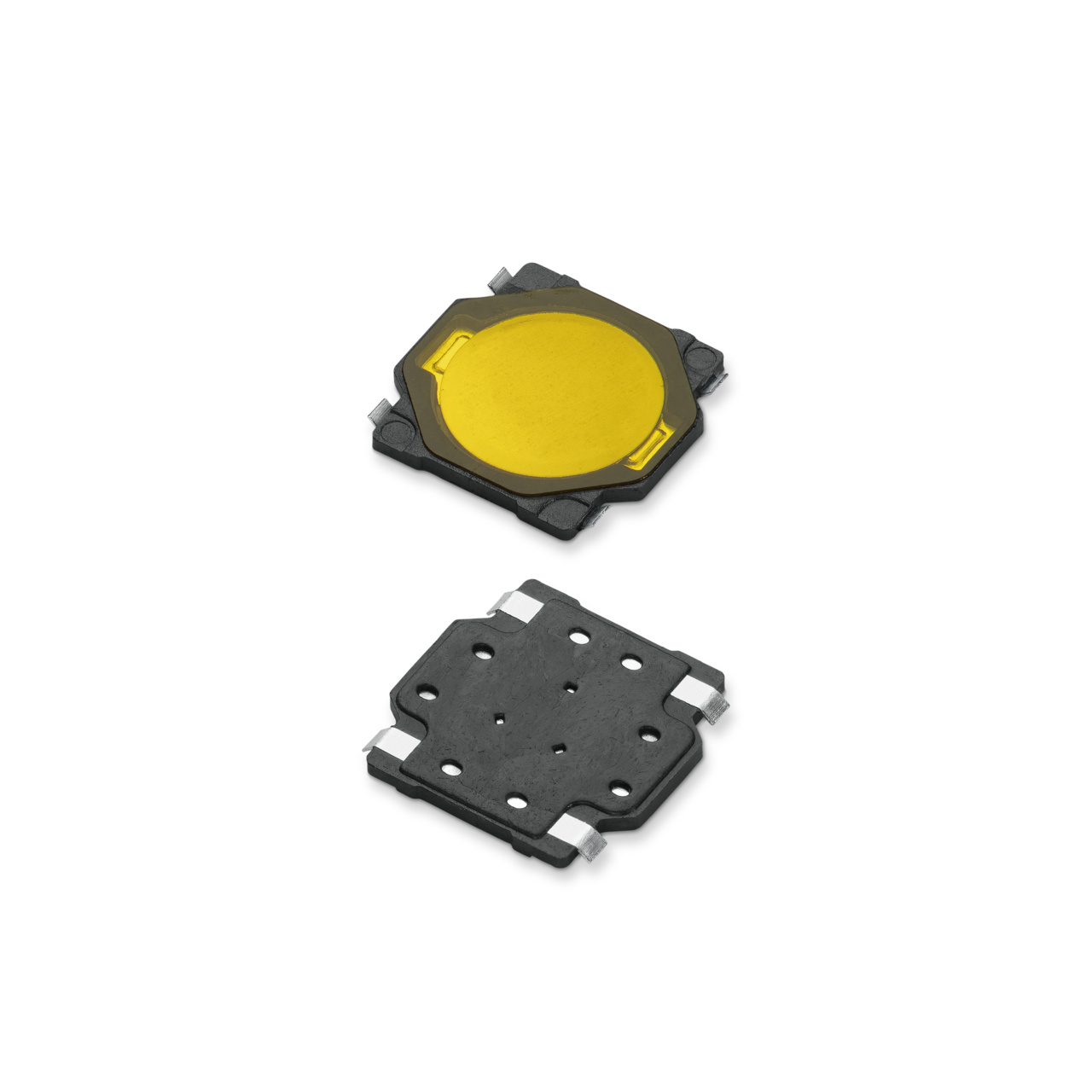

PTS540JM035SMTR
PTS540JM035SMTR LFS | Series: PTS540
The PTS540 series of ultra low profile SMT top actuated switches are perfect for consumer electronics such as Bluetooth headsets, MP3 accessories, and remote controls. Known for being reliable and long-lasting, PTS540 switches are available with a 3.7 x 3.7mm footprint and a 0.35mm thickness.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 N |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 3.7 x 3.7 mm footprint
- 0.35 mm thickness
- High number of cycles
PTS540JM035SMTR Applications
- MP3 accessories
- Bluetooth headset
- Remote controls
