PTS636SK43
PTS636SK43 LFS | Series: PTS636

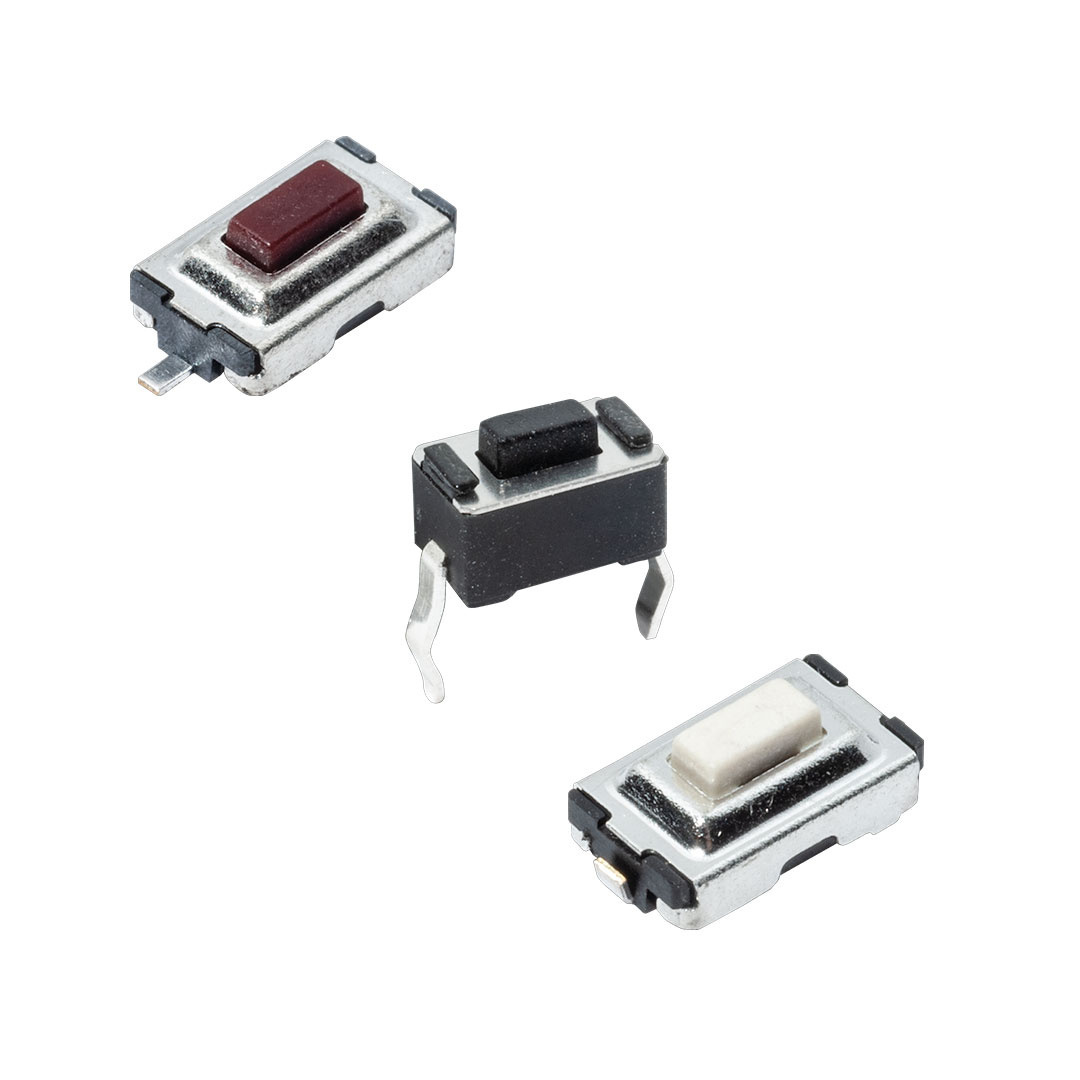

The PTS636 series is a small 6.0 x 3.5 form factor in SMT version with 3 different heights and 4 available actuation forces, ideal for general usage applications. It also includes ground pin options on 2.5 mm height version.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 2 N / Nominal 2.5 N / Max 3 N |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Activation Orientation | Top actuated |
Terminals Complementary Information | THT |
Circuitry | SPST NO |
- 6.0 x 3.5 mm footprint
- Multiple heights
- THT or SMT type
PTS636SK43 Applications
- IoT devices
- Home automation
- Remote controls
PTS636SK43 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| GSPTS003905 | PTS636SK43 LFS | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
