PTS641SM31SMTR2
PTS641SM31SMTR2 LFS | Series: PTS641

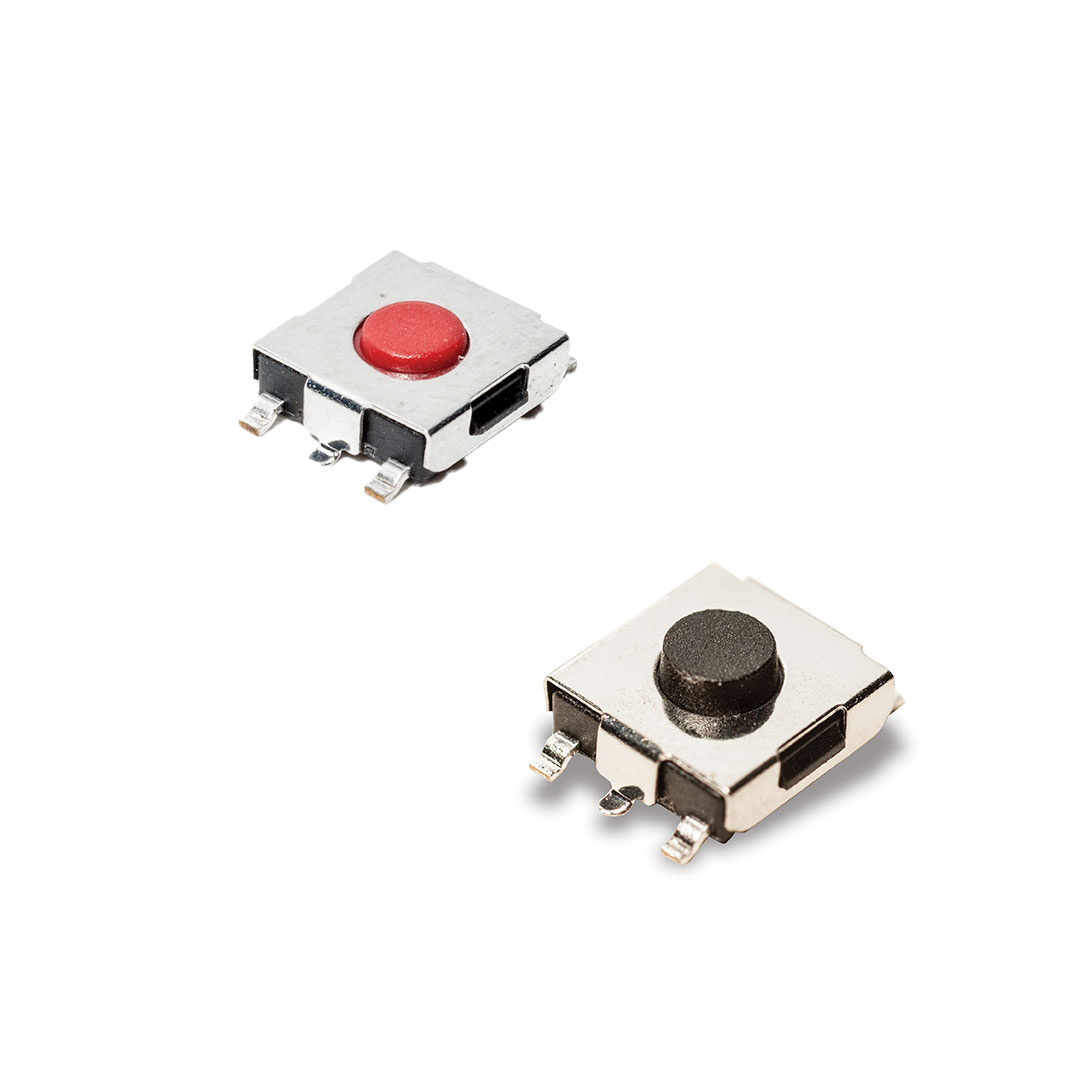

The PTS641 series SMT top actuated switches are recognized in the home and garden equipment, white goods, and metering industries for their responsiveness and reliability. Available in a 6.3 x 6.3mm footprint, in multiple heights and with a ground pin option, the PTS641 can help any product perform better than the competition.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 NMin 110 gf / Nominal 160 gf / Max 210 gf |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 6.3 x 6.3 mm footprint
- Multiple heights
- Ground pin option
PTS641SM31SMTR2 Applications
- Metering
- White goods
- Home and garden equipment
PTS641SM31SMTR2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y97GT23B2RAFP | PTS641SM31SMTR2 LFS | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
