PTS645VM13SMTR92

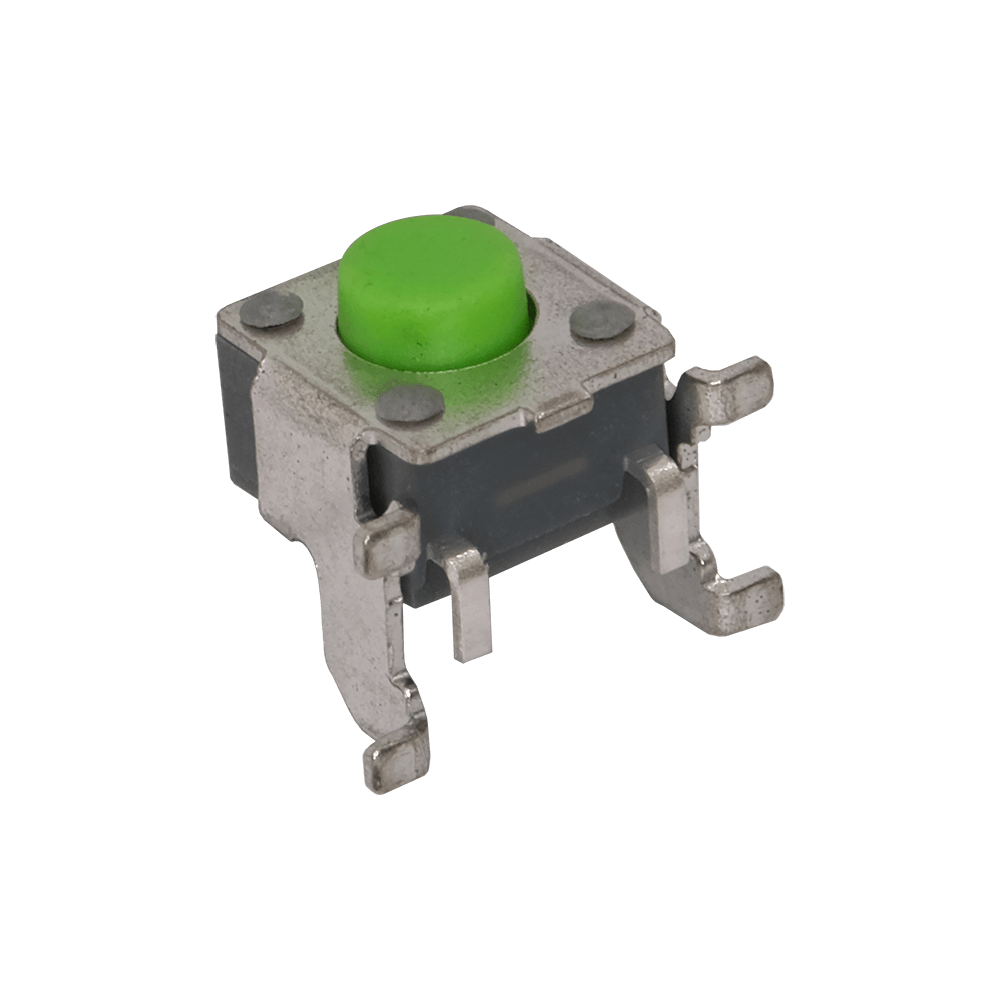

PTS645VM13SMTR92 LFS | Series: PTS645V
Designers for power tooling, set top and access boxes, instrumentation and general consumer products turn to the PTS645V series of 6mm SMT side actuated tactile switches to give their products the reliability and long life demanded by regular use. PTS645V switches also feature strong PCB soldering pads, full SMT processing and a compact 6 x 6mm design, to ensure they fit even the most innovative of designs.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 NMin 110 gf / Nominal 160 gf / Max 210 gf |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Activation Orientation | Side actuated |
Illumination | Not applicable |
Ingress Protection | IP 40 |
Circuitry | SPST NO |
- Full SMT processing
- Strong PCB soldering pads
- Compact 6 x 6 mm design
PTS645VM13SMTR92 Applications
- Consumer Products
- Set Top and Access Boxes
- Instrumentation
- Home and Garden Equipment
