PTS810SJK250SMTR
PTS810SJK250SMTR LFS | Series: PTS810

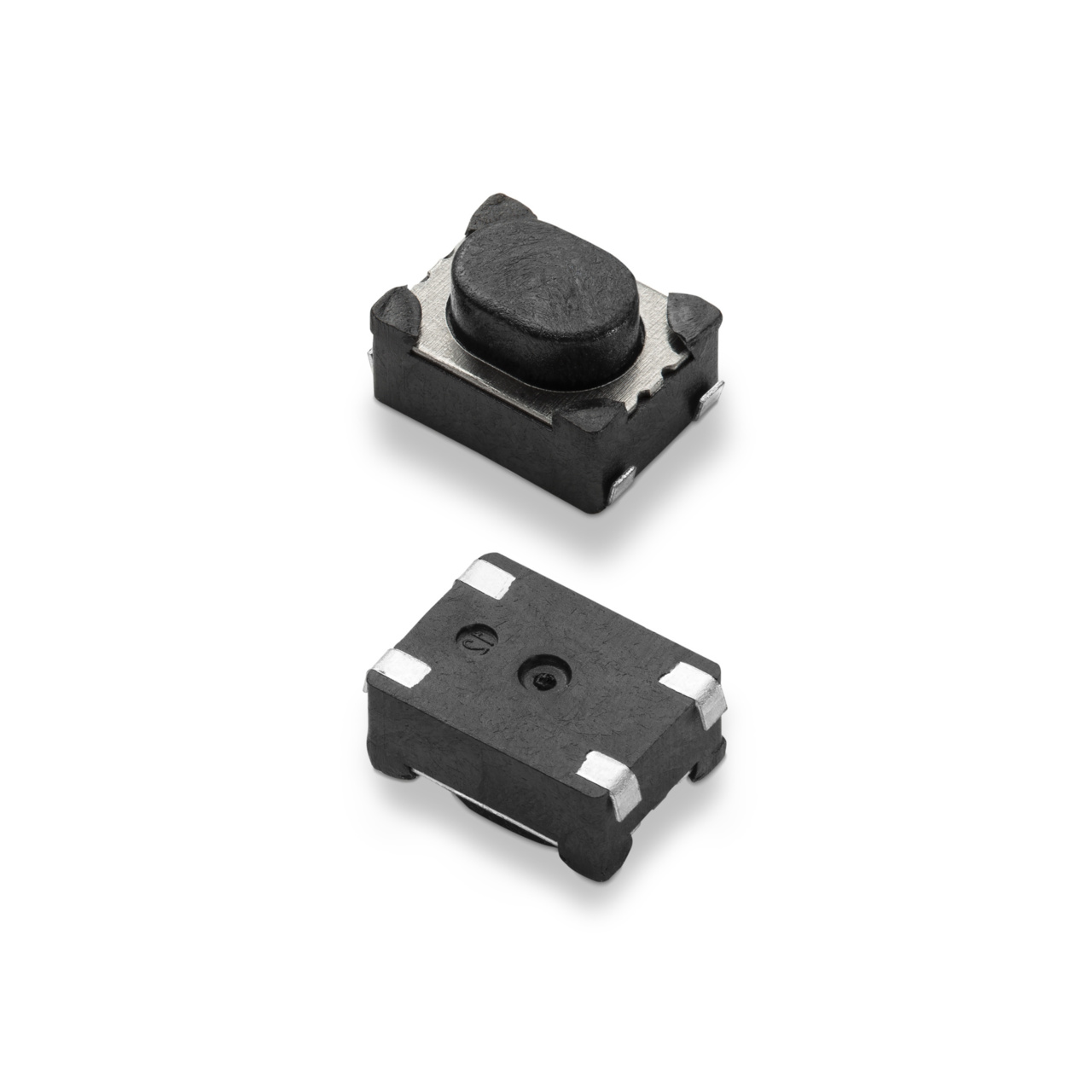

Control panels, keyless entry products, and remote control devices all feature the PTS810 series microminiature SMT top actuated switches. Available in a thickness of 2.5mm with a 4.2 x 3.2mm footprint, the PTS810 is recognized by designers for being reliable and long-lasting in the face of constant use.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.9 N / Nominal 2.6 N / Max 3.3 NMin 190 gf / Nominal 260 gf / Max 330 gf |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 16 Volt |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Terminals Complementary Information | J |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 4.2 x 3.2 mm footprint
- 2.5 mm thickness
- High number of cycles
- Color coded actuators
PTS810SJK250SMTR Applications
- Control panels
- Nomad devices
- Remote controls
