PTS815SJG250SMTR
PTS815SJG250SMTR LFS | Series: PTS815

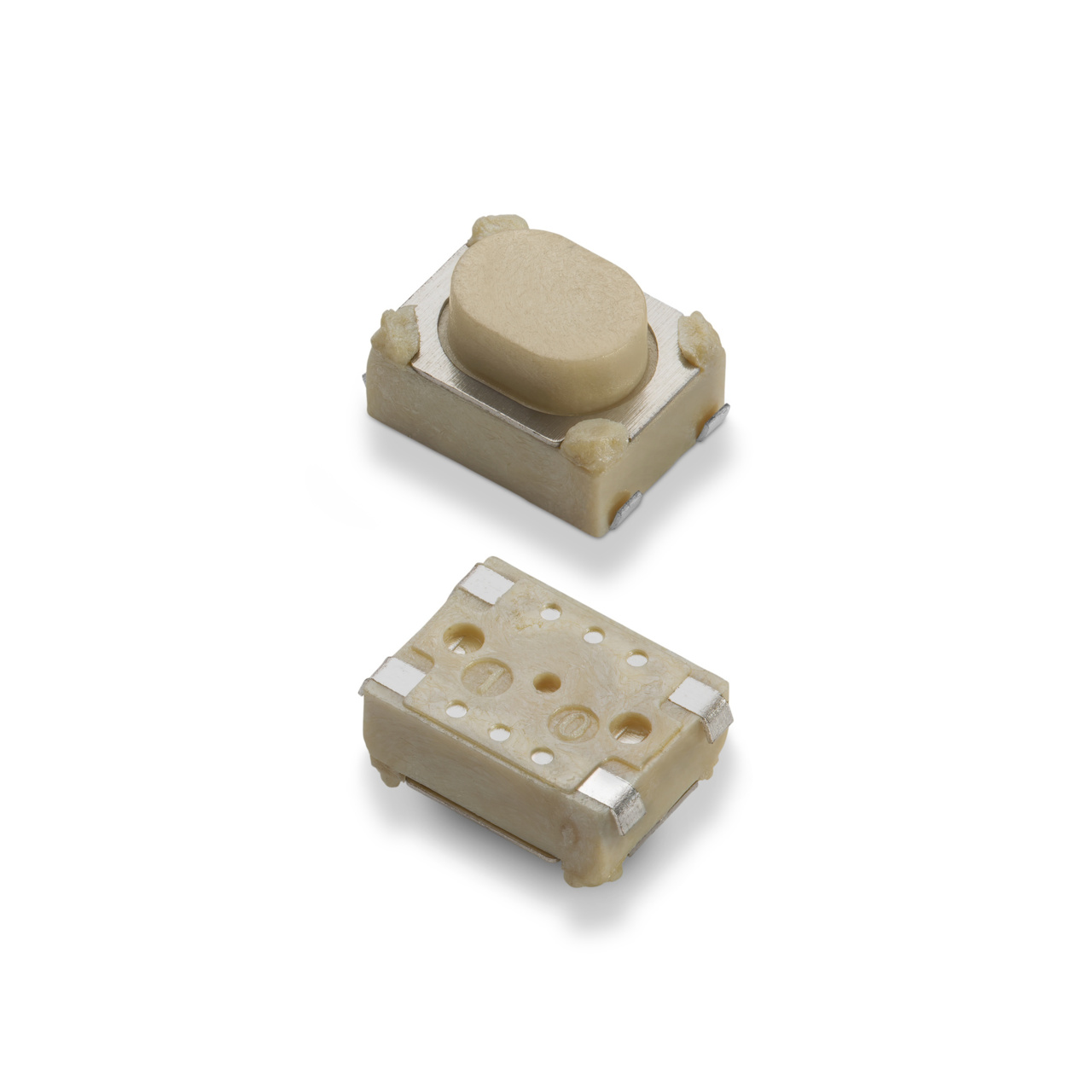

The PTS815 series is a small 4.2 x 3.2 form factor in SMT version with 2.50 mm height and 3 available actuation forces, ideal for general usage applications.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 10 mA |
Rating - Maximum Current | 50 mA |
Operating Force | Min 3 N / Nominal 4 N / Max 5 NMin 300 gf / Nominal 400 gf / Max 500 gf |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 1 Volt / Max 16 Volt |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 4.2 x 3.2 mm footprint
- 2.5 mm thickness
- Commercial grade
PTS815SJG250SMTR Applications
- IoT devices
- Home automation
- Remote controls
