PTS820J20MPSMTR

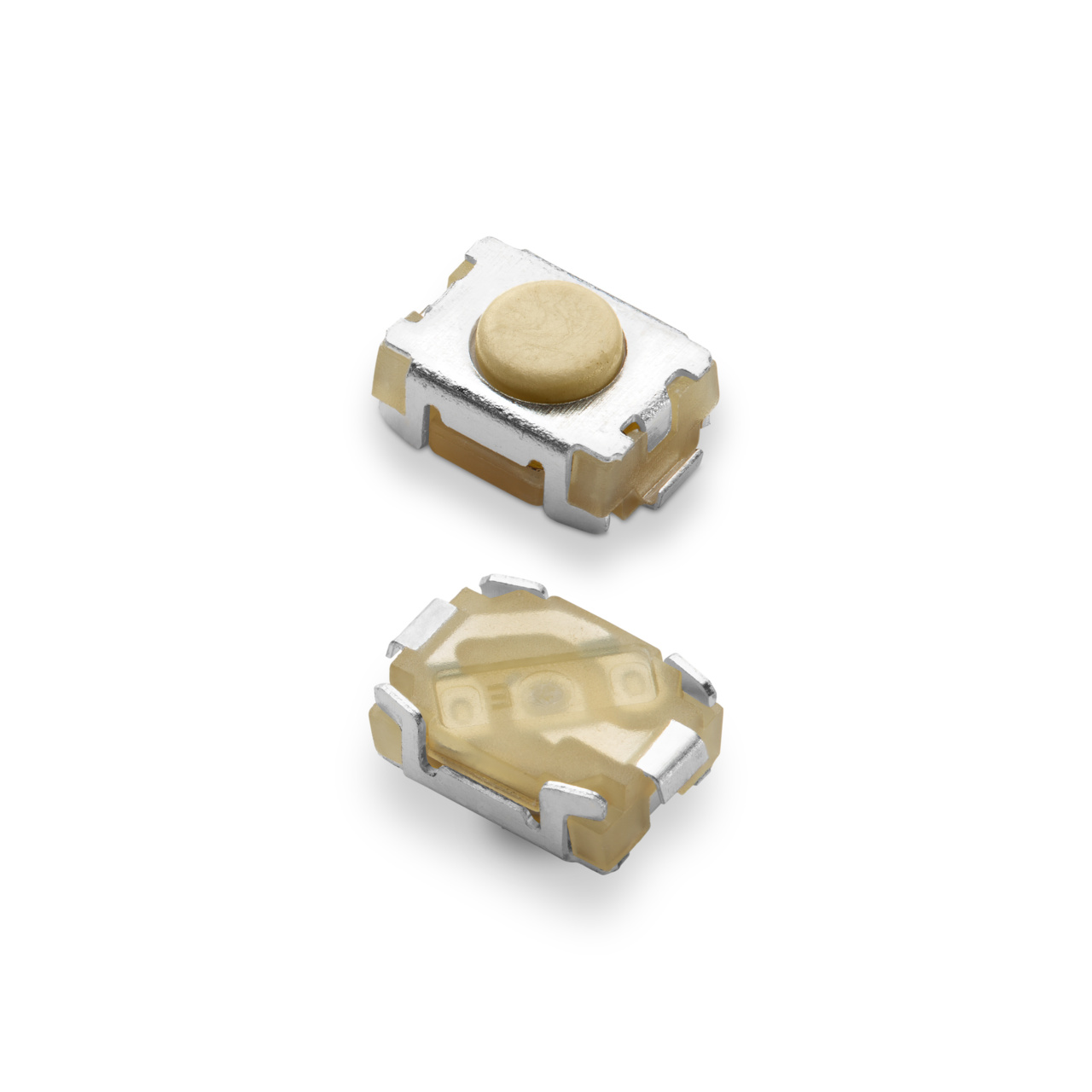

PTS820J20MPSMTR LFS | Series: PTS820
The PTS820 series of microminiature SMT top actuated switches have a 3.9 x 2.9mm footprint and feature the option for three different heights. When combined with a reputation for being longlasting and reliable, these switches are perfect for any keyless entry, remote control or control panel application a designer can dream up.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 N |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- 3.9 x 2.9 mm footprint
- Three different heights
- High number of cycles
- Reduced footprint
PTS820J20MPSMTR Applications
- Control panels
- Nomad devices
- Remote controls
- Keyless entry system
PTS820J20MPSMTR Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y97MT16B2MBFP | PTS820J20MPSMTR LFS | View More |
