PTS840GMSMTR

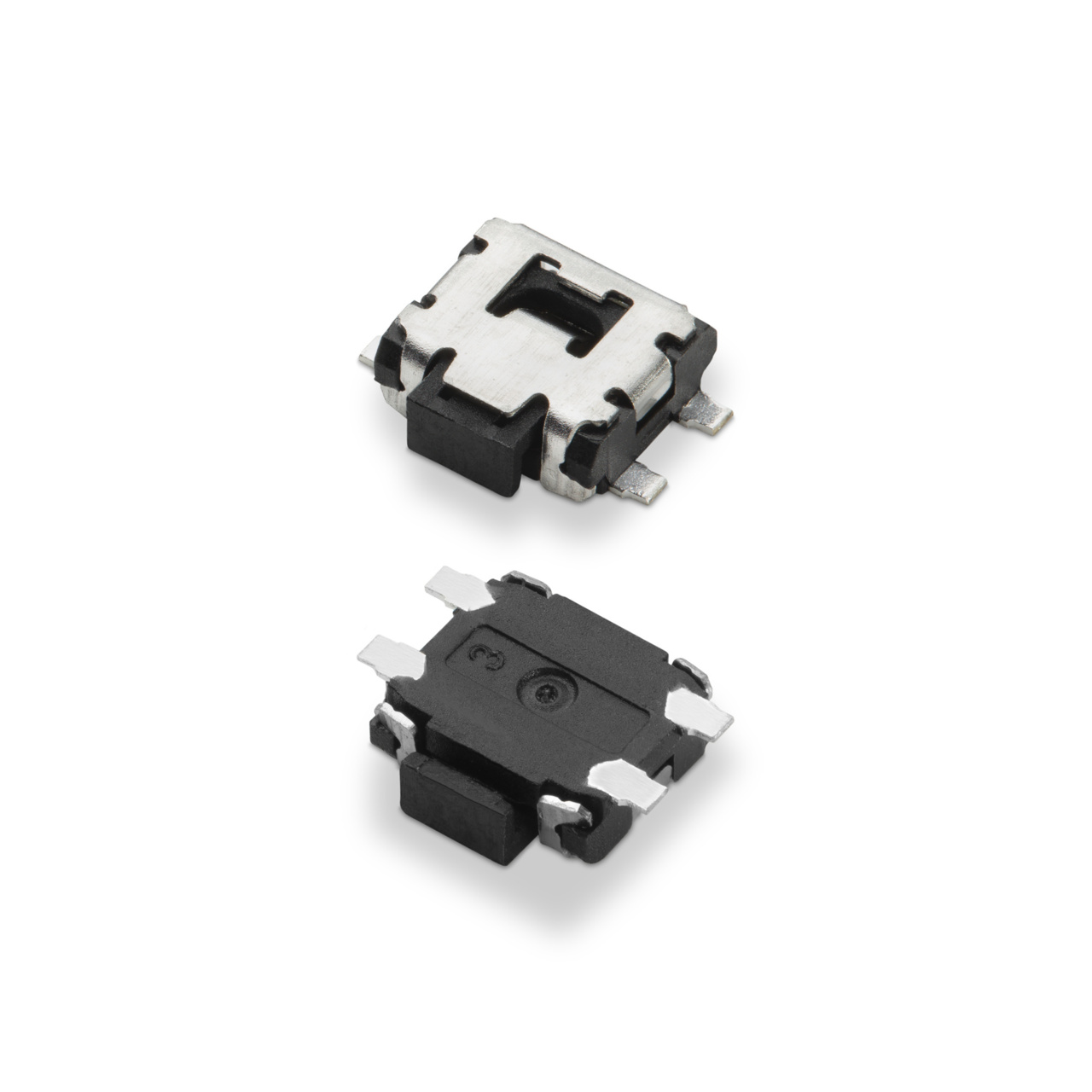

PTS840GMSMTR LFS | Series: PTS840
The PTS840 series of microminiature SMT side actuated switches feature a front PIP leads option for strong shear resistance – and a reduced footprint of 3.5 x 3.55mm. The long-lasting, reliable PTS840 is perfect for applications in the personal health diagnostics, consumer electronics and remote control fields.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.2 N / Nominal 1.6 N / Max 2.3 N |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Activation Orientation | Side actuated |
- 3.5 x 3.55 mm footprint
- Front PIP leads option for strong shear resistance
- ESD pin option
- Reduced footprint
PTS840GMSMTR Applications
- Nomad devices
- Remote controls
- Personal health diagnostics
- Consumer electronics
PTS840GMSMTR Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y97NS23B2ABFP | PTS840GMSMTR LFS | View More |
