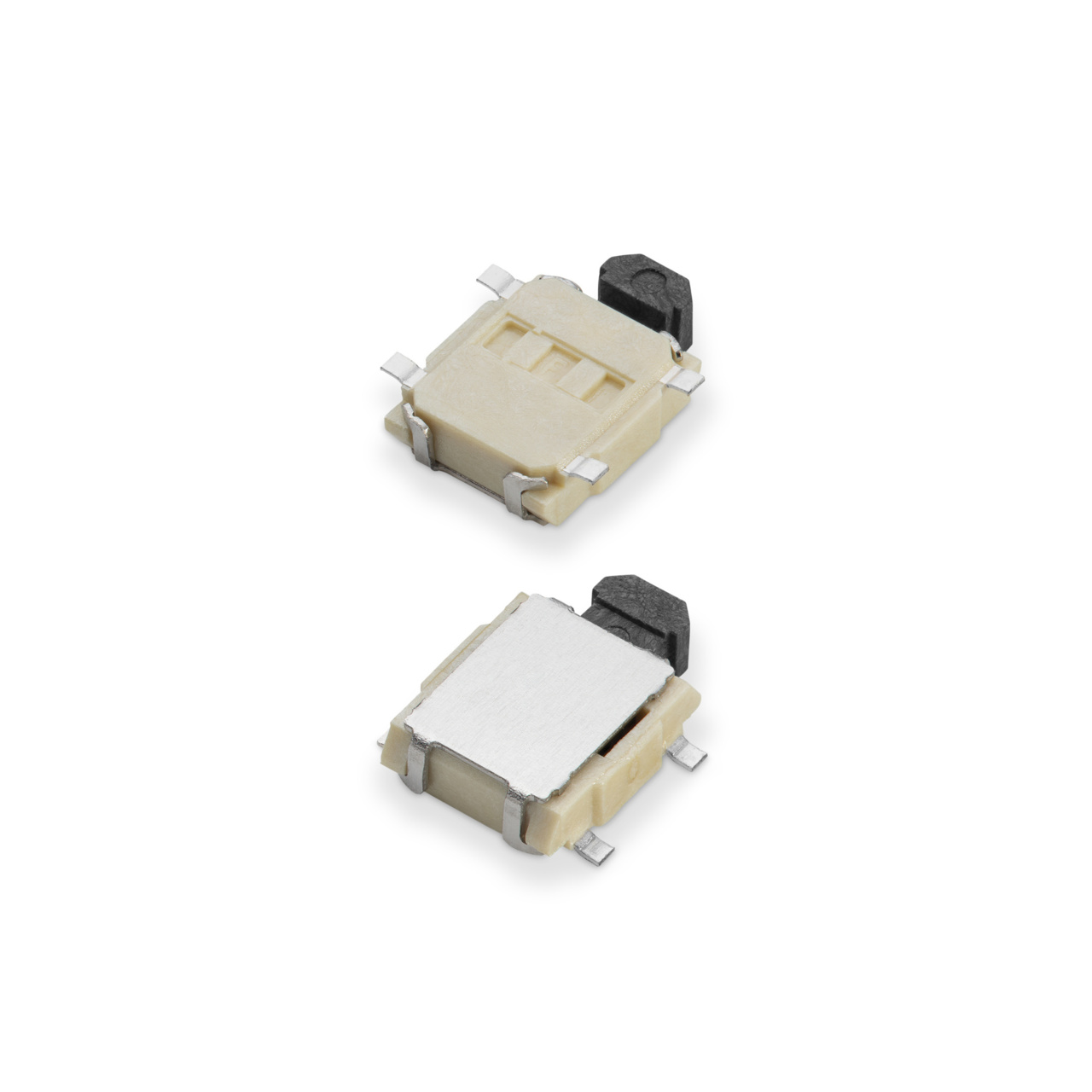

PTS850VM18SMTR
PTS850VM18SMTR LFS | Series: PTS850
PTS850 series, the low profile and small size side actuated tactile switch, has a size of only 5.4 x 5.0 mm and product height above PCB only 1.8 mm. With the low profile design and small size, PTS850 gives designers the flexibility to either free up space in their designs to add additional functionality or reduce the overall size of PCB. PTS850 series is available in 180 gf and 350 gf operating forces, with or without boss, which are the most common versions used in the market. The high quality and low profile PTS850 tactile switch is perfect solution to high-end consumer wearable and medical device markets.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.4 N / Nominal 1.8 N / Max 2.6 N |
Mechanical Life Cycles | 50000 |
Electrical Life Cycles | 50000 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Terminals Complementary Information | SMT |
Activation Orientation | Side actuated |
Circuitry | SPST NO |
- 5.4 x 5.0 x 1.8 mm package
- SMT termination
- Side actuated with or without boss design
- 180 & 350 gf versions
- Lifecycles 50k
PTS850VM18SMTR Applications
- Headphone/Headset
- Health monitoring
- Sports watch
- Black box
- Bluetooth accessory
- Navigation
