837-1000-150
SWITCH 837-1000-150 | Series: 7000

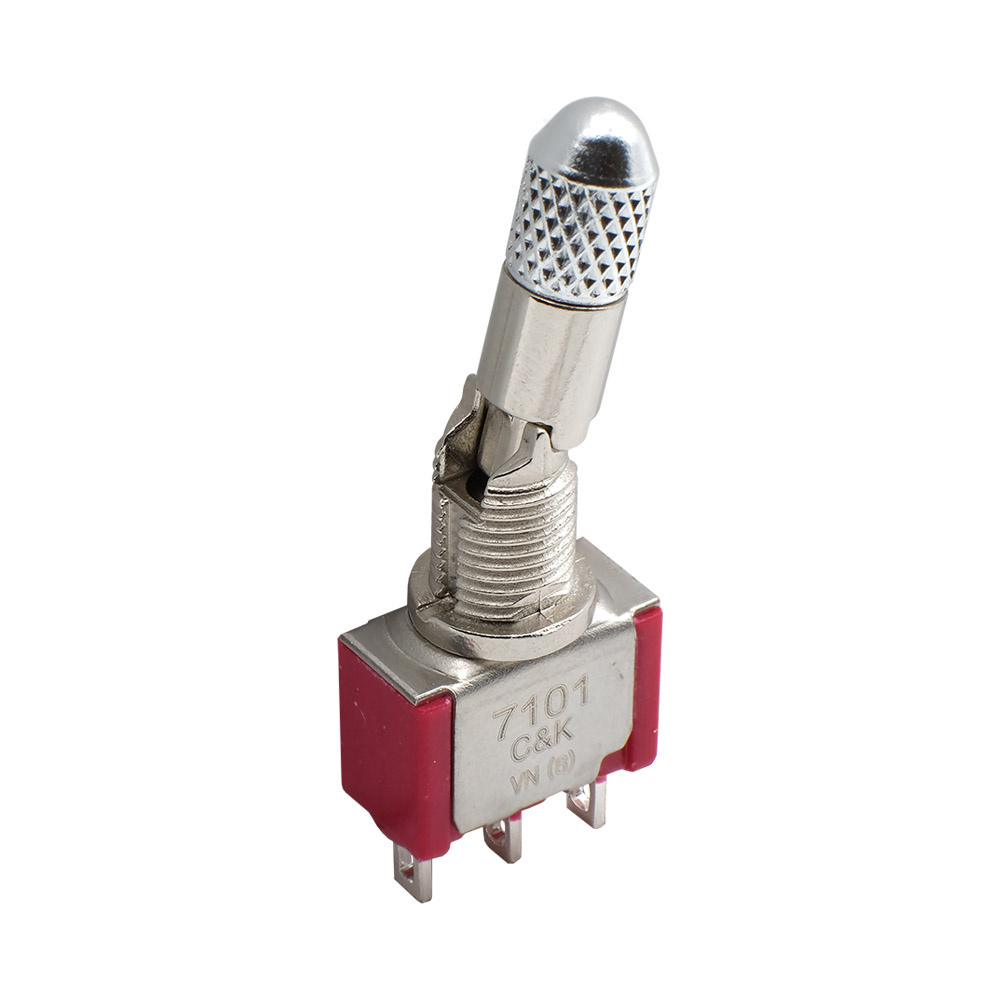

With a wide variety of actuator and termination options available, the 7000 series miniature toggle switches, which now include an optional knurled cap on the locking lever options, are used by designers throughout the medical equipment and telecommunications industry to give product designs the long-lasting, high performance switch they need to succeed. The 7000 series are epoxy terminal-seal compatible with bottom wash cleaning and are engineered to be both multi-pole and multi position, ensuring a perfect fit, no matter the design specifications.
| Property | Value |
|---|---|
Circuitry | DPDT |
Activation Type | Maintain |
Switch Function | On-None-On |
Contacts | Thru Hole |
Mechanical Life Cycles | 100000 |
Seal | Epoxy |
Contact Plating | Silver |
Terminals Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Rating - Maximum Current | 5 A |
Terminals Complementary Information | Vertical right angle PC thru-hole |
Actuator | 0.420 inches high |
Electrical Rating - Activated - Voltage AC | Max 120 Volt |
- Multi-pole and multi-position
- Epoxy terminal-seal compatible with bottom wash cleaning
- RoHS compliant models available
- Wide variety of actuator and termination options
837-1000-150 Applications
- Telecommunications
- Instrumentation
- Medical equipment
837-1000-150 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 837-1000-150 | SWITCH 837-1000-150 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
