E101SYCRE

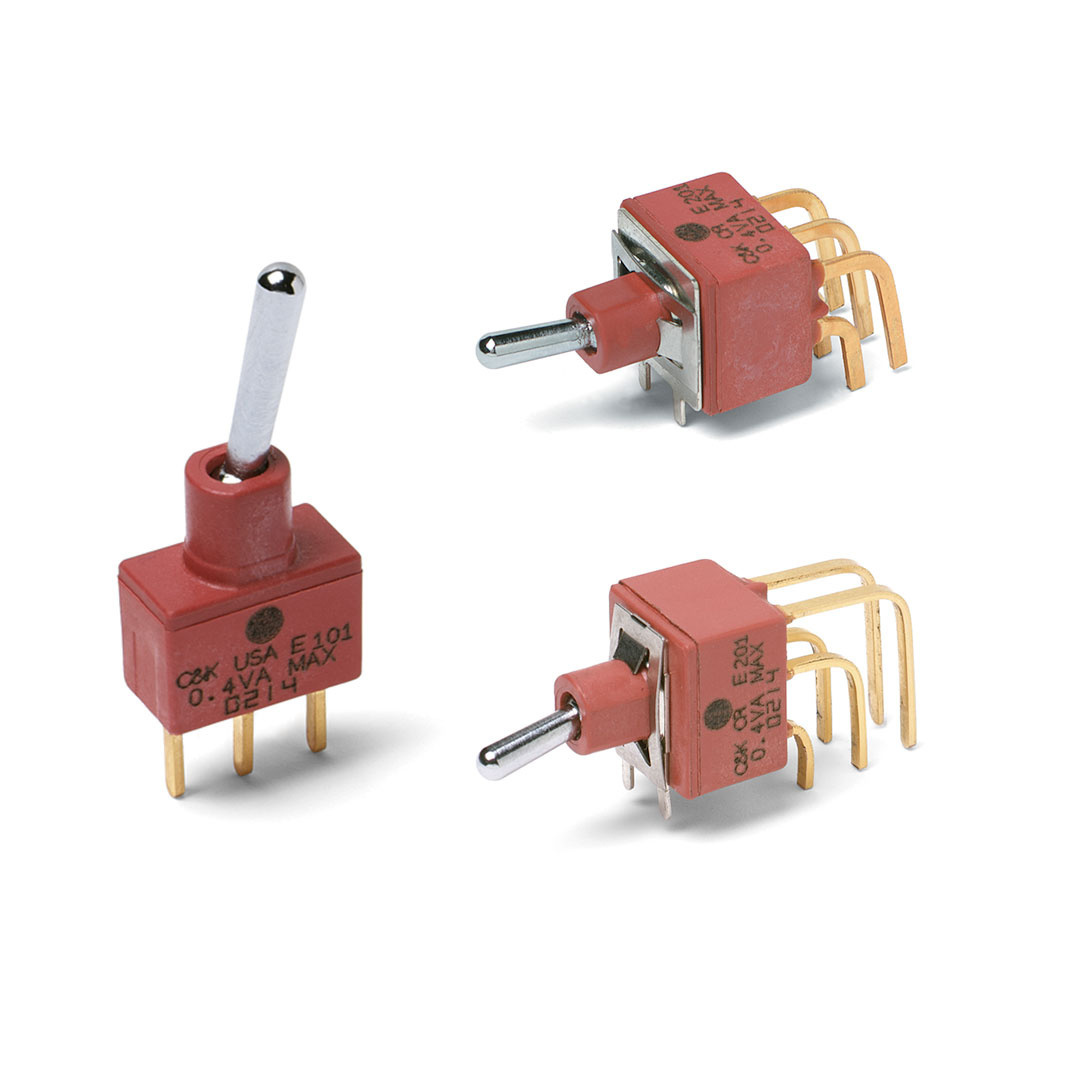

SWITCH E101SYCRE | Series: E Toggle
Designers in medical equipment, instrumentation and telecommunications industries need high-quality, long-lasting switches that can withstand any environment. The E series miniature toggle switches are sealed against solder and cleaning process contaminants – and come with a UL 94V-0 nylon case and bushing, helping to ensure that the products last. ESD protection is available in the E series as well
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Maintain |
Switch Function | On-None-On |
Rating - Maximum Current | 7.5 A |
Contacts | Thru Hole |
Mechanical Life Cycles | 40000 |
Seal | Epoxy |
Ingress Protection | IP 57 |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Contact Plating | Gold over silver |
Terminals Plating | Matte Tin |
Actuator | 0.500 inch high |
- Sealed against solder and cleaning process contaminants
- UL 94V-0 Nylon case and bushing
- Multi-positions
- ESD protection available
- RoHS compliant models available
E101SYCRE Applications
- Telecommunications
- Instrumentation
- Medical equipment
