ET05SD1V3QE

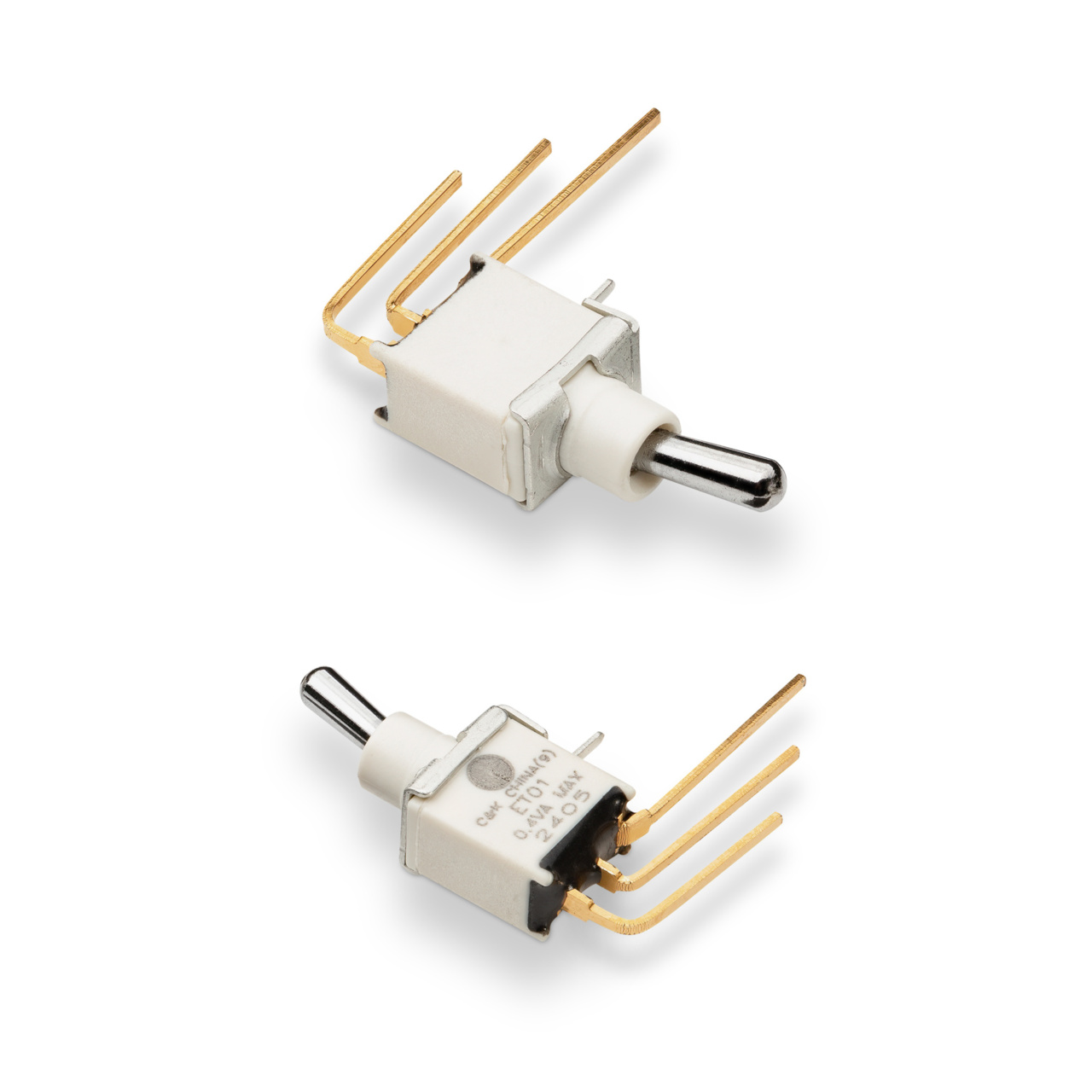

SWITCH ET05SD1V3QE | Series: ET
The ET series sealed subminiature toggle switches are often used in the medical and telecommunications industry in hand-held or instrumentation applications. Featuring a small footprint (to help save space on the PCB) and ESD protection, long-lasting ET switches also come with strong protection from solder and cleaning process contaminants.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Switch Function | Mom.-Off-Mom |
Mechanical Life Cycles | 30000 |
Seal | Epoxy |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Electrical Rating - Activated - Voltage AC | Max 120 Volt |
Contact Plating | Silver |
Terminals Plating | Silver |
Terminals Complementary Information | Vertical mount V-bracket |
Actuator | 0.400 inches high |
- Sealed against solder and cleaning process contaminants
- ESD protection available
- Thru-hole and surface mount models
- RoHS compliant models available
- Compact size and small footprint save PCB space
ET05SD1V3QE Applications
- Hand-held telecommunications
- Instrumentation
- Medical equipment
ET05SD1V3QE Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| ET05SD1V3QE | SWITCH ET05SD1V3QE | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
