GT11MV3BE

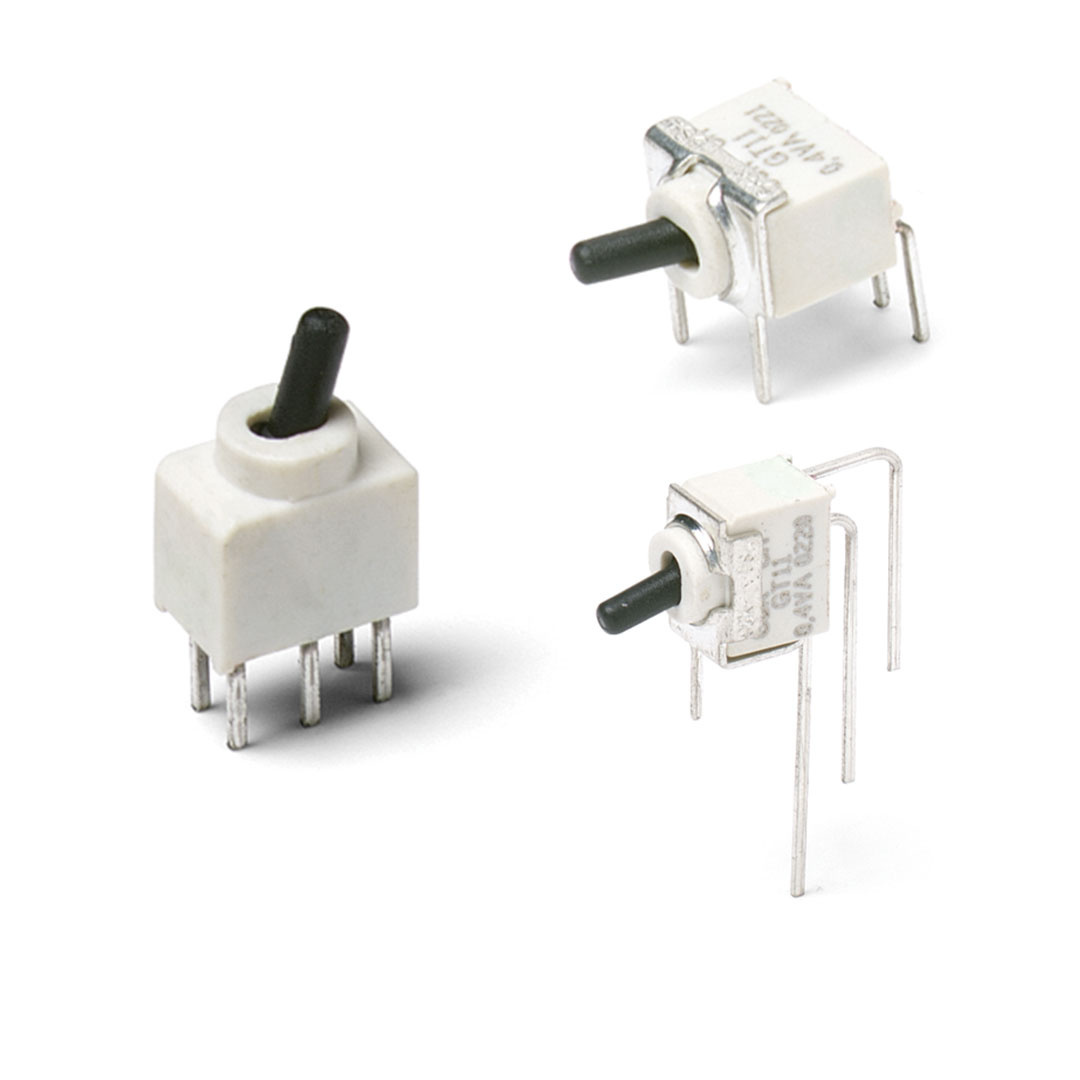

SWITCH GT11MV3BE | Series: GT Toggle
GT series sealed ultraminiature toggle switches are used most often in hand-held telecommunications devices or those applications that require small instrumentation. The GT series are ultraminiature switches – featuring the smallest footprint available in the industry. GT switches are built using high-temperature materials (UL 94V-0) and are sealed against solder and cleaning process contaminants – ensuring they will last when used in harsh environments.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Maintain |
Switch Function | On-None-On |
Rating - Maximum Current | 15 mA |
Contacts | Thru Hole |
Illumination | Not applicable |
Seal | Epoxy |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Contact Plating | Gold Alloy |
Terminals Plating | Gold |
Actuator | Standard Round. Length: 3.81mm |
- Sealed against solder and cleaning process contaminants
- Ultraminiature size, smallest footprint available
- Thru-hole and surface mount models
- High temperature materials (UL 94V-0)
- RoHS compliant and compatible
GT11MV3BE Applications
- Hand-held telecommunications
- Small instrumentation
