880024

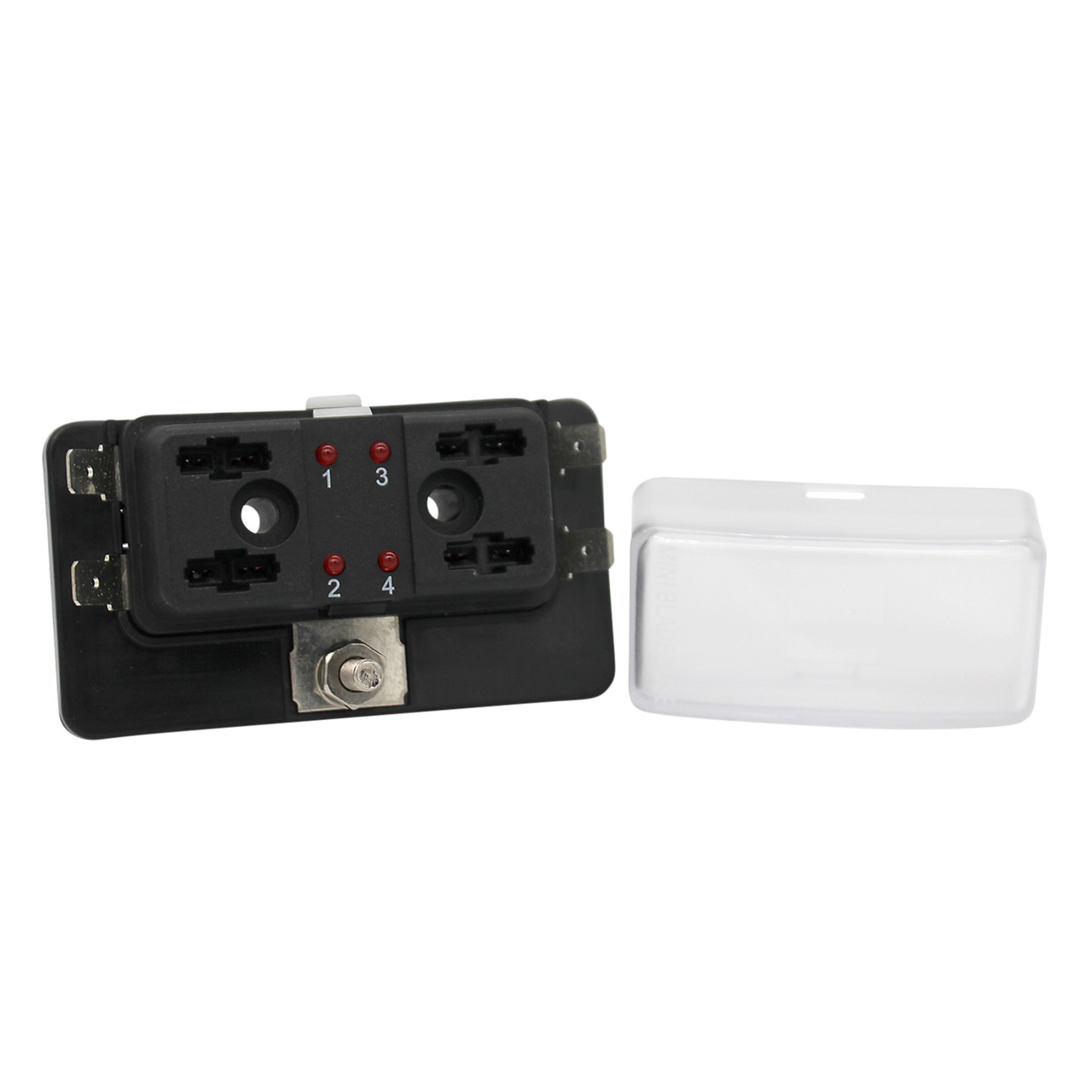

FUSE BLOCK SD MINI 4-WAY w/LED | Series: SD MINI®
SD MINI® Fuse Blocks provide a cost effective, consolidated circuit protection solution. Designed to accept standard MINI® fuses, these products ensure the safe distribution of power throughout an application. Integrated LED blown fuse indicators allow for quick maintenance, preventing troubleshooting & equipment downtime. These products are RoHS compliant. Fuses sold separately.
| Property | Value |
|---|---|
Mounting Method | Bolt-Down |
Fuse Type | MINI |
Current Rating Max (A) | 100 |
Voltage Rating (V) | 32 |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -20 |
Recommended Torque | 8 in-lb (0.9Nm) |
Input Terminals | 10-32 Stud |
Output Terminals | 6.3mm Blade |
Current Rating Max per Circuit in Amps | 30 |
Mounting Type | 4xM5 |
- LED blown fuse indicators
- Snap-on insulating cover included
- Centralizes wiring to a convenient location
- Insulating cover provides circuitry protection
- Continuous current rating of 100 A
880024 Applications
- Centralized distribution for accessory circuits
- Ideal solution for DIY projects
