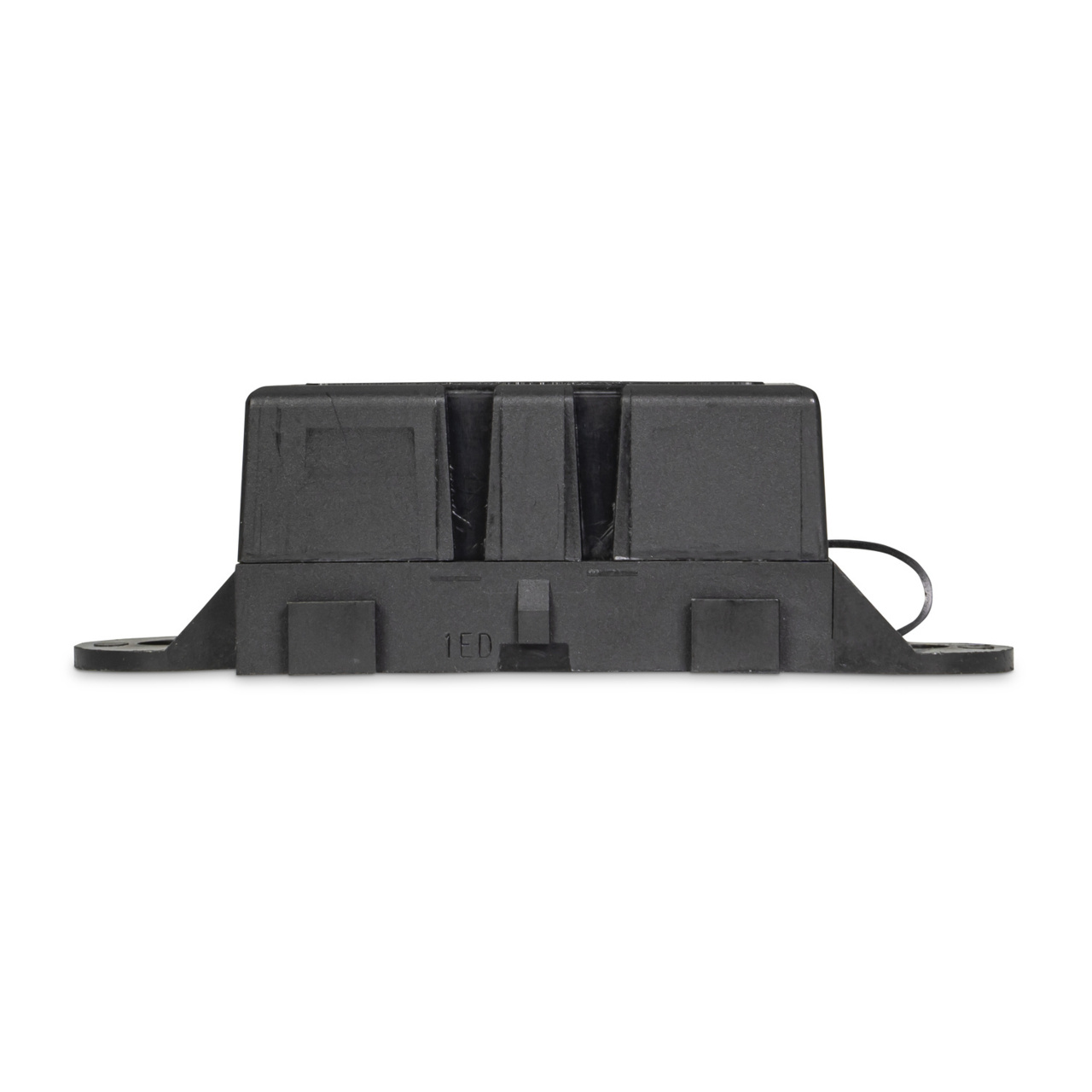

04980903-BP SO Back JPG
04980903-BP AR Package JPG

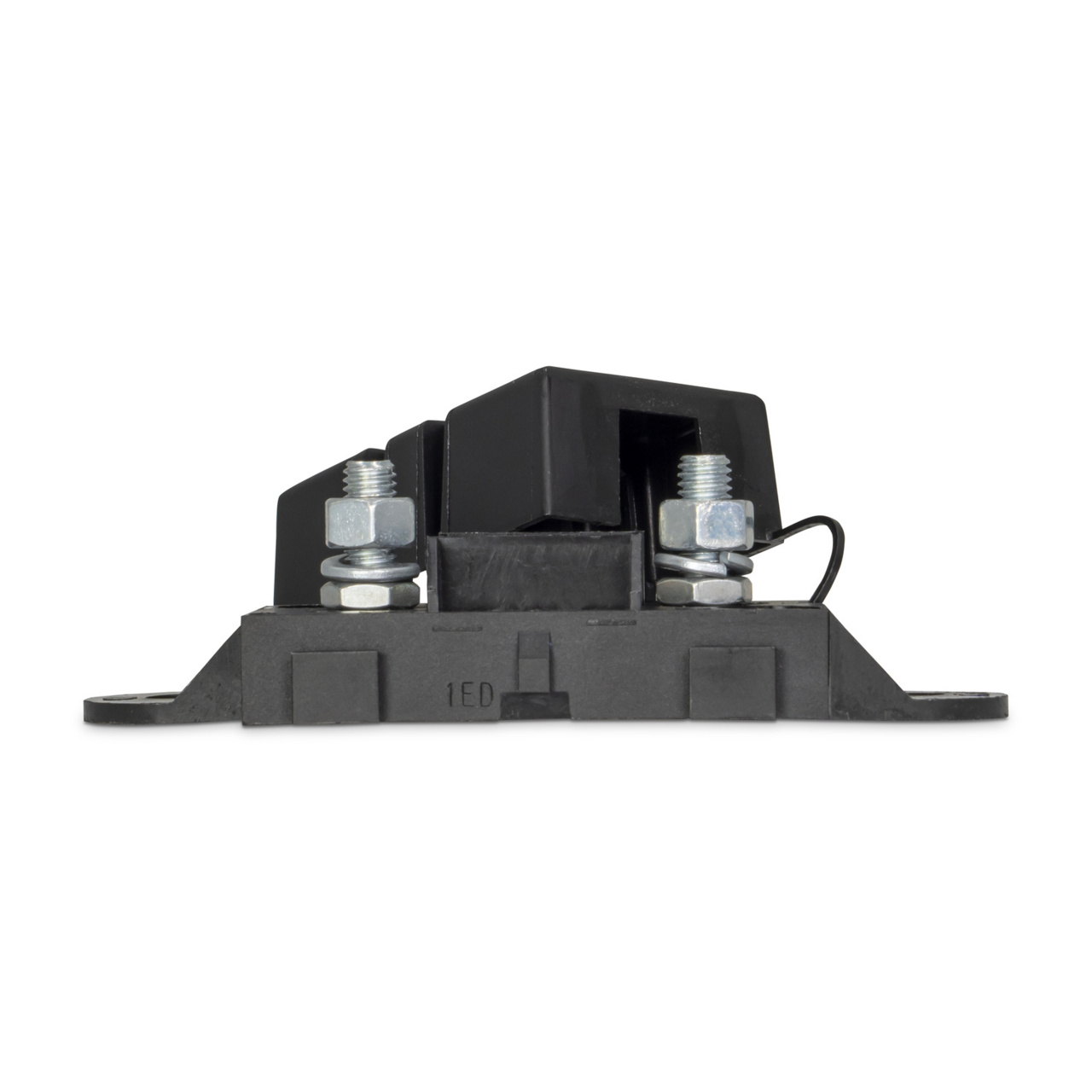

04980903-BP SO Back Open JPG
04980903-BP Side 2 JPG

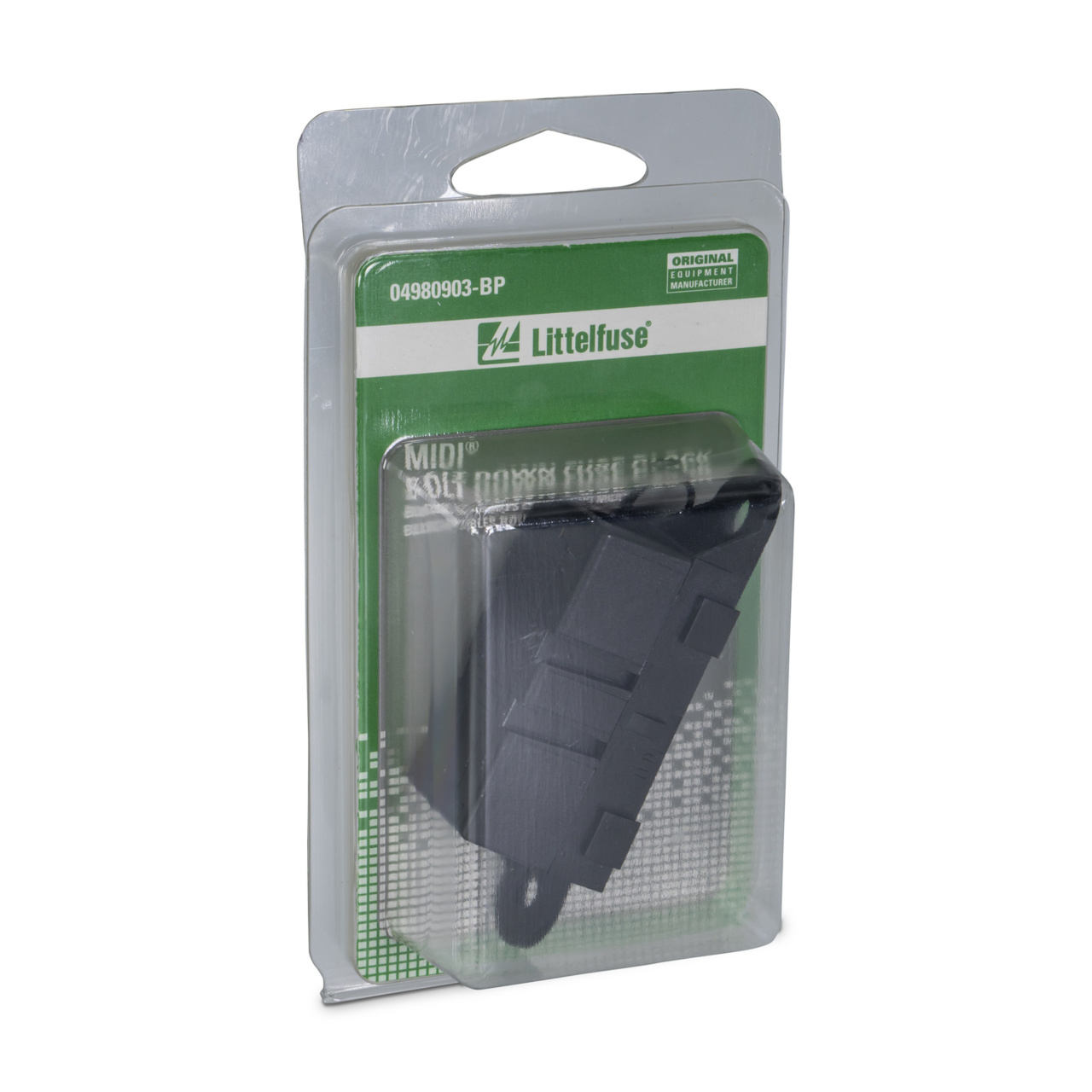

04980903-BP AL Package JPG

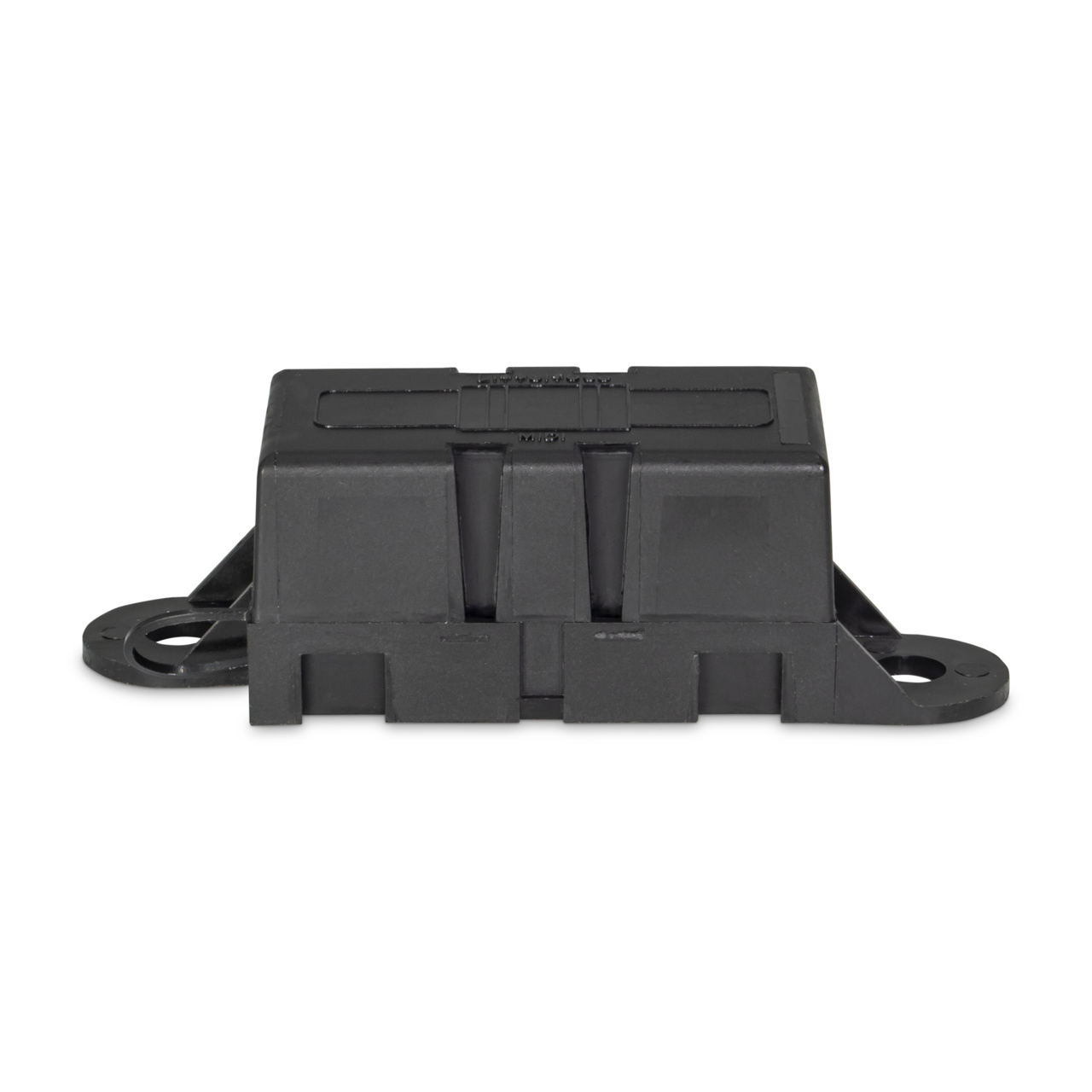

04980903-BP Front JPG
04980903-BP Back JPG
04980903-BP SO Front JPG

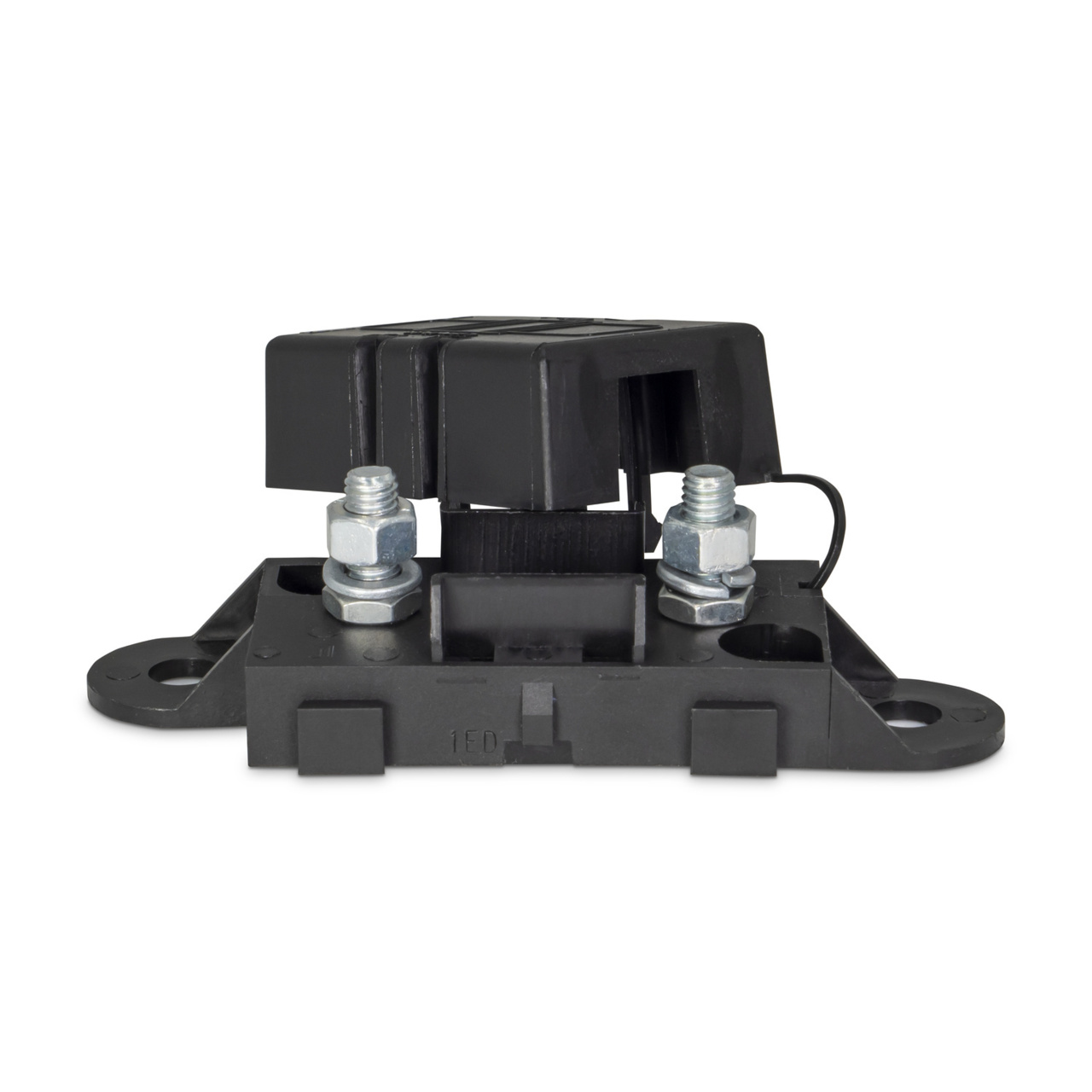

04980903-BP Back Open JPG
04980903-BP SO Side 2 Open JPG
04980903-BP SO Bottom JPG
04980903-BP SO Front Package JPG
04980903-BP SO Side 1 JPG
04980903-BP SO Top JPG
04980903-BP Side 2 Open JPG

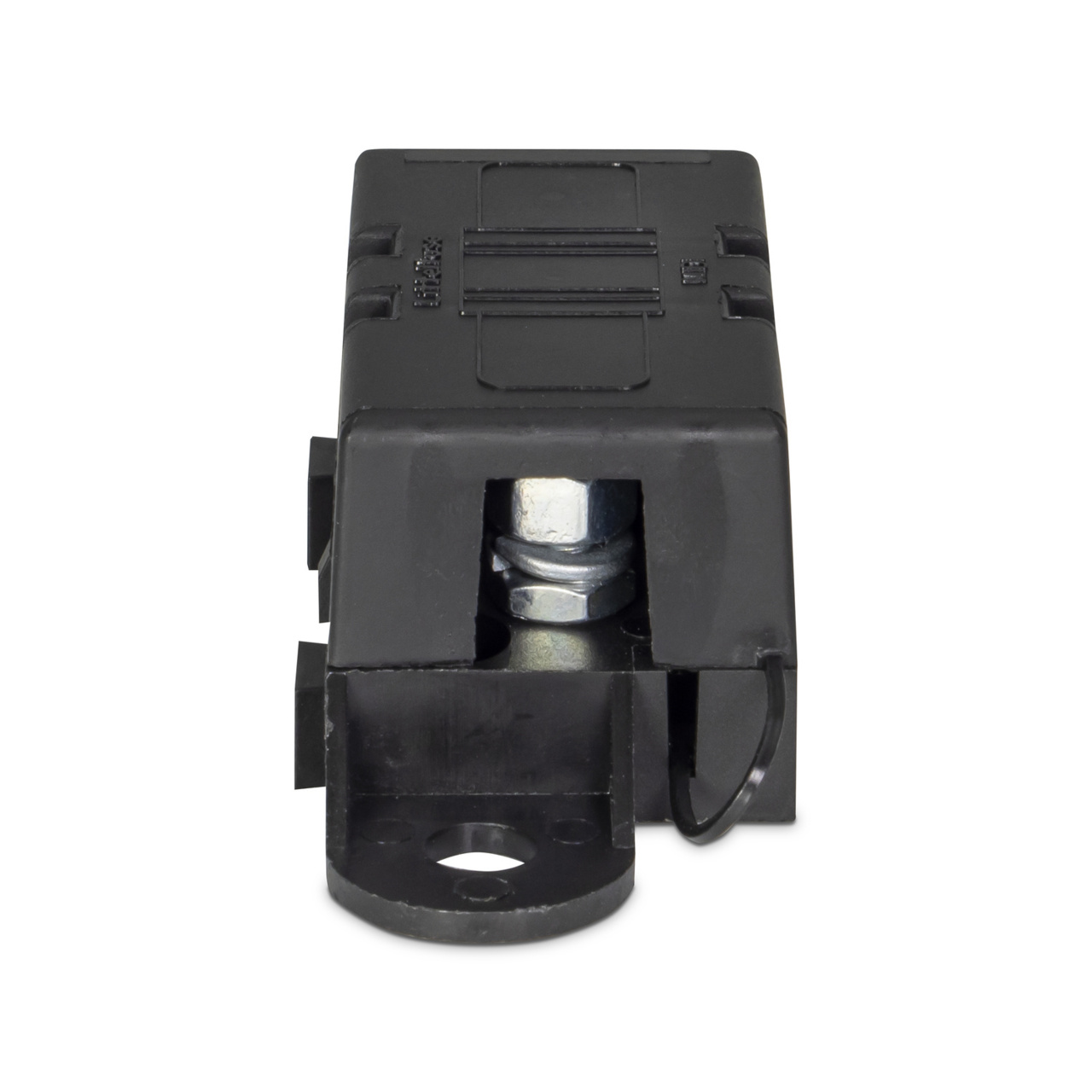

04980903-BP Side 1 JPG
04980903-BP SO Side 2 JPG

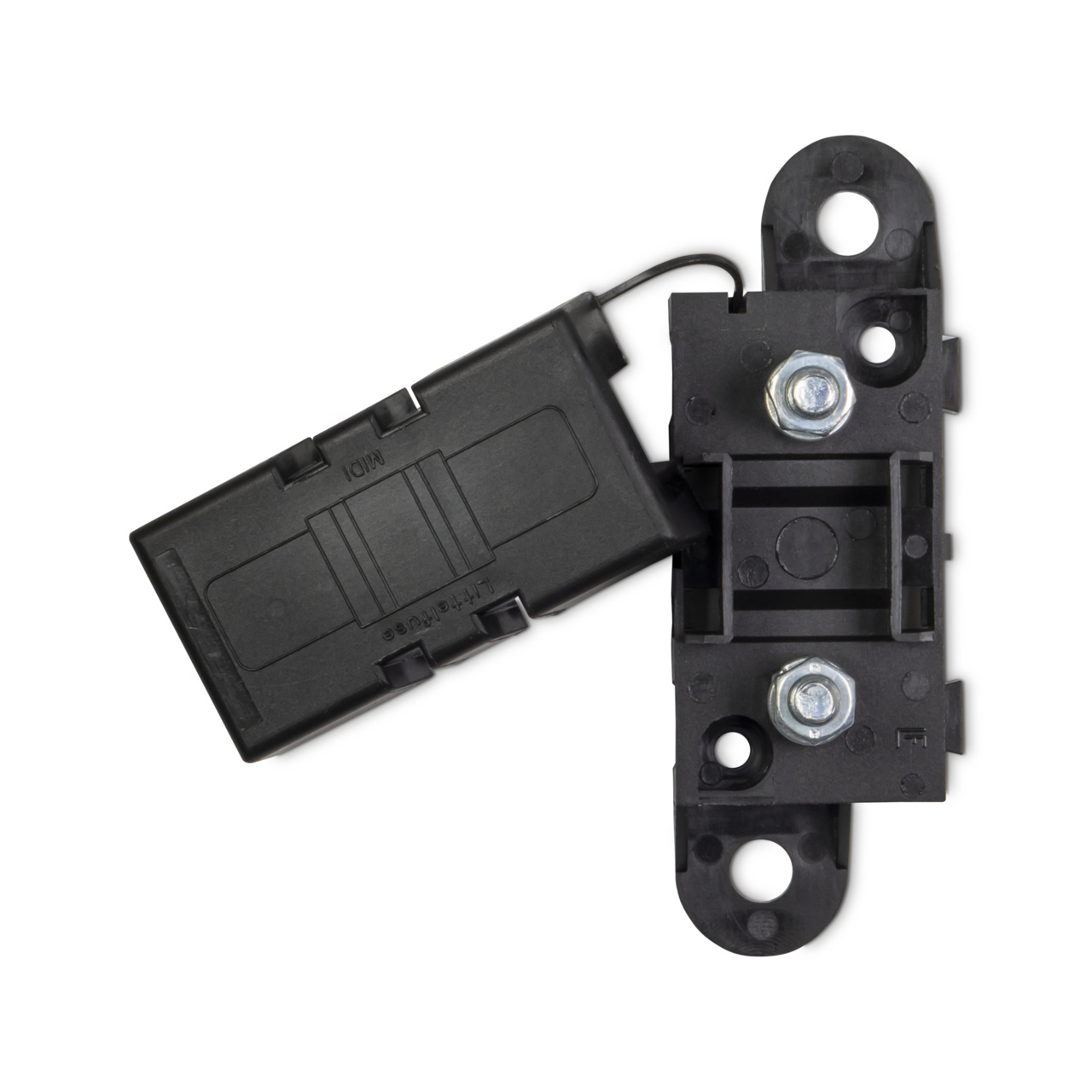

04980903-BP SO Top Open JPG
04980903-BP AR JPG

04980903-BP

MIDI FUSE HOLDER RETAIL | Series: MIDI - 498
info

Thanks to interlocking pins on its sides, the MIDI® 498 Series 58 V Bolt-Down High-Current Fuse Holder can be used as a single automotive fuse holder or combined with additional fuse holders to create a multi-fuse block. Compatible with MIDI® bolt-down fuses (sold separately) up to 200 amps, the high-amp fuse holder comes with a protective thermoplastic cover that can be tethered to the base.

This model of the MIDI® 498 Series fuse holder (04980903-BP) includes a base with mounting tabs and M6 holes and a protective cover with cable openings at the ends. Split washers and hex nuts are included for simple installation of a fuse on the M5 threaded studs.

PropertyValue
Current Rating (Continuous) in Amps
150
Fuse Type
MIDI
Voltage Rating (V)
58
Current Rating Max (A)
200
Mounting Method
Bolt Down
Current Rating Max Terminal in Amps
200
Input Terminals
M6
Output Terminals
M6
Flammability Rating
UL 94 V-0
  • Base style 2 with mounting brackets and M6 holes is designed for out-board mounting
  • M5 threaded studs, split washers, and hex nuts for simple fuse installation
  • Protective cover openings at the ends (positions A and D; see 2D drawing) accommodate heavy-duty cables
  • Blister packaging promotes easy retail display
