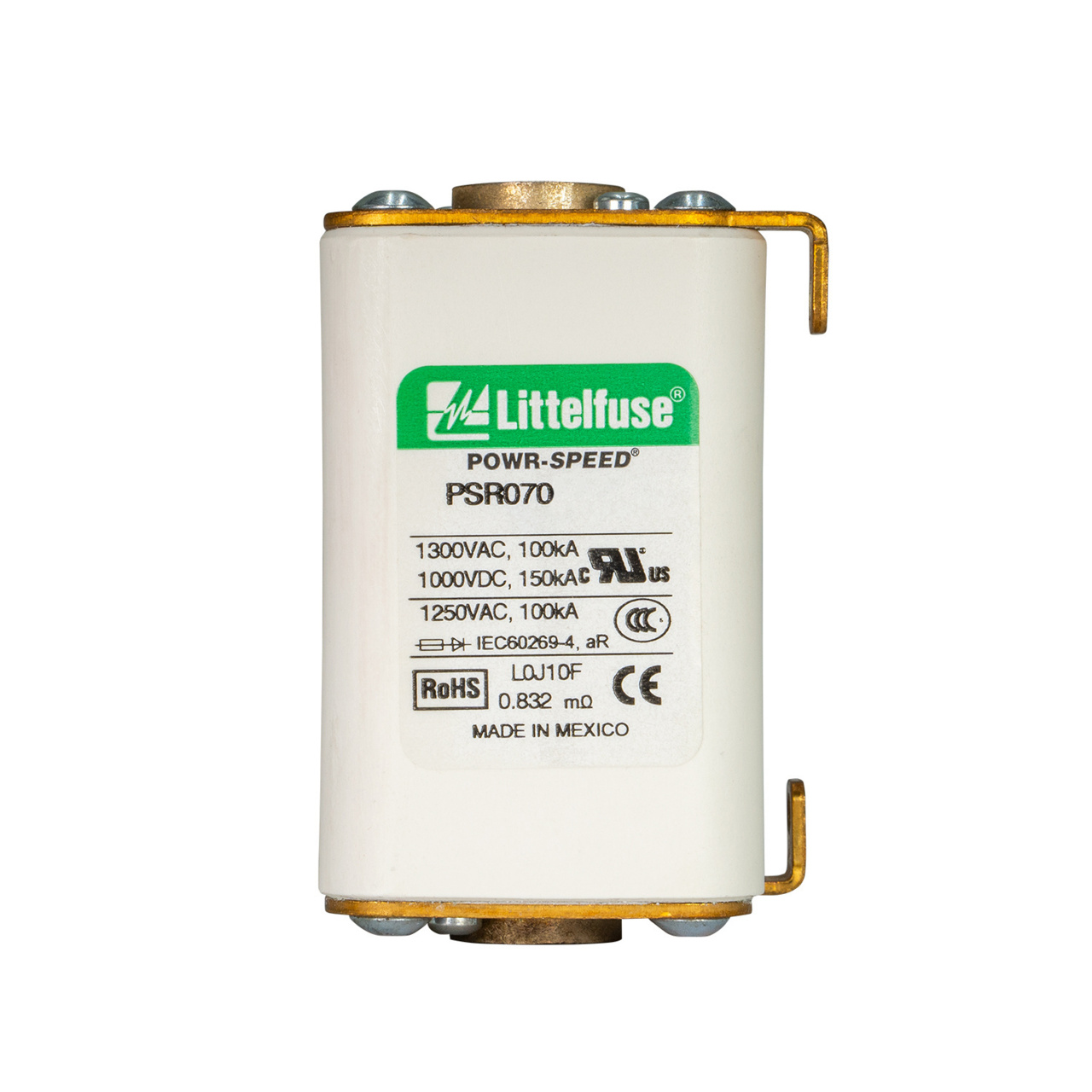

PSR070FL0200

POWR-SPEED SQB SIZE 70 FLUSH METRIC 200A | Series: PSR Flush End
info

Littelfuse PSR Series High-Speed Square Body Fuses are specially designed for protection of power semiconductor devices such as diodes, triacs, IGBTs, SCRs, MOSFETs and other solid state devices that are typically designed into power conversion and power conditioning equipment. Variable frequency drives, inverters, UPS, rectifiers and soft-starters are examples of typical equipment designed with sensitive power semiconductor devices that cannot withstand any line surge or overcurrent conditions and require high-speed protection.

Littelfuse POWR-SPEED® PSR Series products offer optimized circuit protection at the extremely fast speed required to protect modern day power conversion devices. Such products are commonly found in numerous applications including pulp and paper industries, cranes and heavy-lifting equipment, processing industries, wastewater treatment plants and various large factories and MRO facilities.

PropertyValue
Current Rating (Continuous) in Amps
200
Interrupting Rating
100 kA @ 1300 Vac
Opening
Very Fast-Acting (FF)
Case Size
70
Amp Code (Part Number)
200
Family style
Square Body
Indicating
Yes
interrupt Amperage (A) - 1
100000
interrupt Amperage (A) - 2
150000
Interupt Voltage Type
AC
interrupt Voltage Type AC/DC) - 2
DC
interrupt Voltage (V) -1
1250/1300
interrupt Voltage (V) -2
1000
Mounting Method
Flush End
Termination Type
Metric Thread
  • Best in class dc performance
  • Extremely current limiting
  • Superior cycling capability
  • Global certification cURus, CCC, IEC
  • Direct bus-bar mount design
  • Visual and optional microswitch fuse blown indication
  • Low watt-loss design
  • Compliance with US and Canadian requirements
  • Class aR performance according to IEC60269-4

PSR070FL0200 Applications

Highlights Section

  • Power Conversion Devices (UPS, Inverter, Rectifiers, Drives)
  • DC Systems (DC Common Bus, DC Injection Braking)
  • Battery Protection Application (Energy Storage Systems)
  • Electric Vehicle Charging Stations
  • Heaters and Power Supplies
