AQ27COM-01FTG

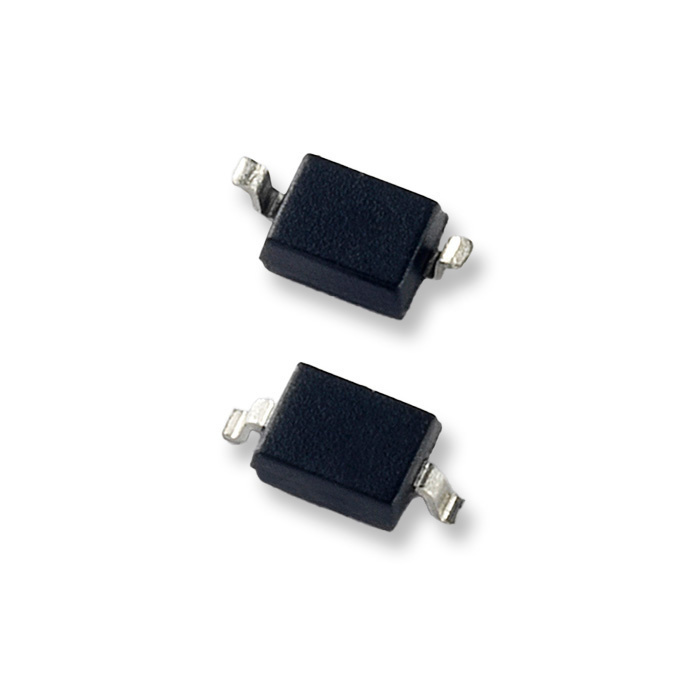

27V 4A 30kV 12pF SOD323 Diode Array | Series: AQ27COM-01
The AQ27COM-01 series bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment.
The AQ27COM-01 series TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 4 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
| Property | Value |
|---|---|
AEC-Q101 Qualified | Yes |
VR (Vstandoff) | 27 |
ILeak (µA) | 0.05 |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 4A |
Clamp Voltage | 50V@4A |
CI/O TYP (pF) | 12.0 |
Polarity | Bidirectional |
Channels | 1 |
MIN VBR@IT (V) | 28 |
Package | SOD323 |
Dynamic Resistance | 0.6 |
Operating Temperature Min (°C) | -40 |
Device Description_string | 27V 4A 30kV SOD323 1ch Bi-dir TVS |
Clamping Voltage_string | 50V@4A |
Device Description | 27V 4A 30kV SOD323 1ch Bi-dir TVS |
Operating Temperature Max (°C) | 150 |
- ESD, IEC 61000-4-2, ±30 kV contact/air
- ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5 2nd edition,4 A (8/20 μs)
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level (MSL-1)
- AEC-Q101 qualified and PPAP capable
AQ27COM-01FTG Applications
- Automotive Applications
- ADAS Control Units
- Body Control Units
- CAN/LIN Bus
- Electronic Control Units
- Factory Automation
- Lighting Control (DALI)
- PowerTrain Control Units
