IXTR400N20X4

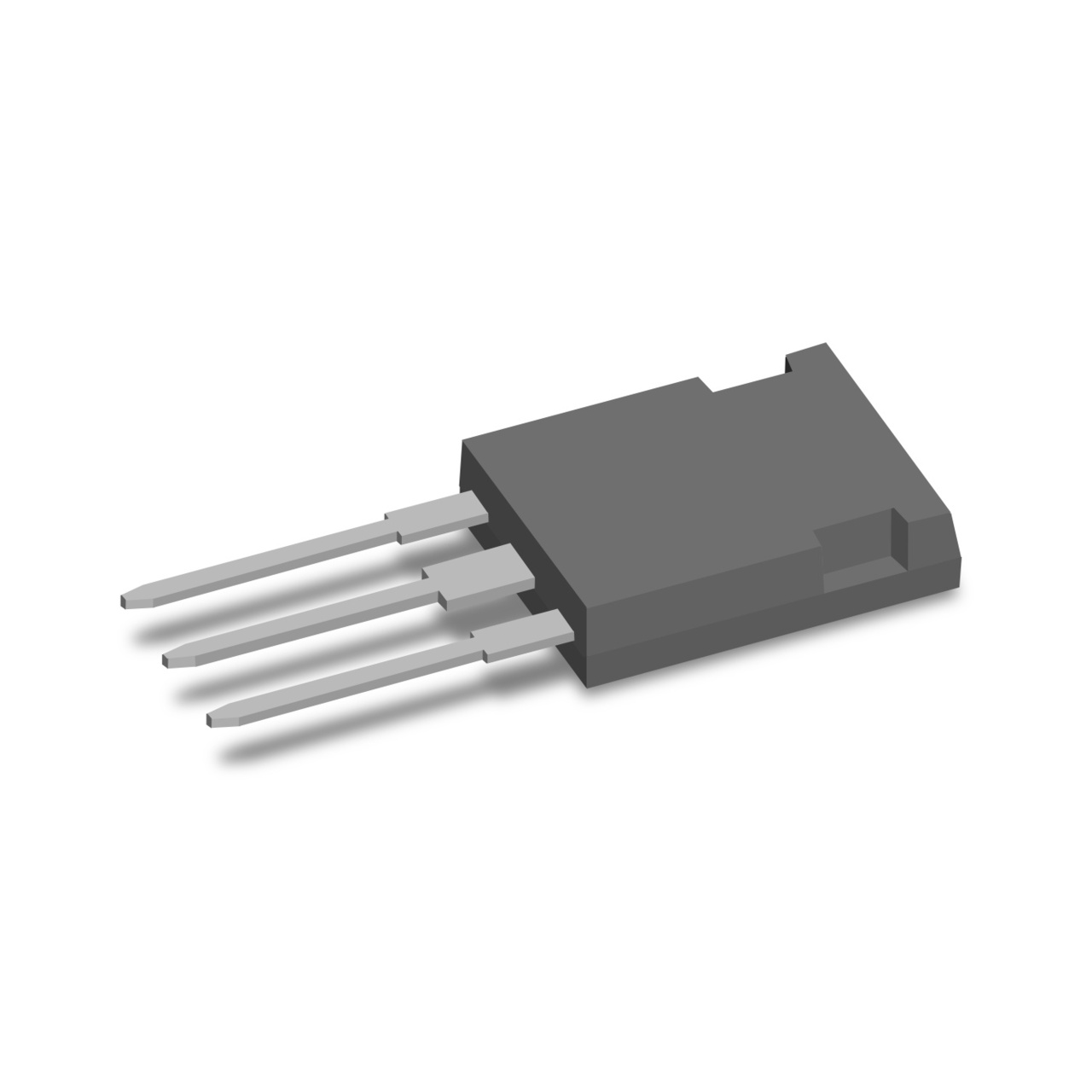

Discrete MOSFET 400A 200V X4 ISOPLUS247 | Series: X4 Class| Property | Value |
|---|---|
Status | Active |
VDSS (V) | 200 |
RDS(ON),max @ 25 °C (Ω) | 0.0033 |
ID, cont @ 25 °C (A) | 400 |
Gate Charge (nC) | 348 |
RthJC (K/W) | 0.11 |
Configuration | Single |
Package Type | TO-247ISO |
CISS (pF) | 27700 |
trr,typ (ns) | 270 |
PD (W) | 1360 |
AEC-Q101 Qualified | No |
TJ Max (°C) | 175 |
CRSS (pF) | 15 |
Voltage Rating (V) | 200 |
