DSEK300-06A
Pwr Diode Disc-FRED sot-227ui(MINIBLOC) | Series: FRED low VfThe FRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 600 |
IFAV [Diode] (A) | 150 |
TC (°C) | 110 |
IFSM (A) | 2000 |
TVJM (°C) | 150 |
RthJC (K/W) | 0.2 |
RthCH (K/W) | 0.1 |
trr (ns) | 60 |
IRM (A) | 25 |
di/dt (A/µs) | 600 |

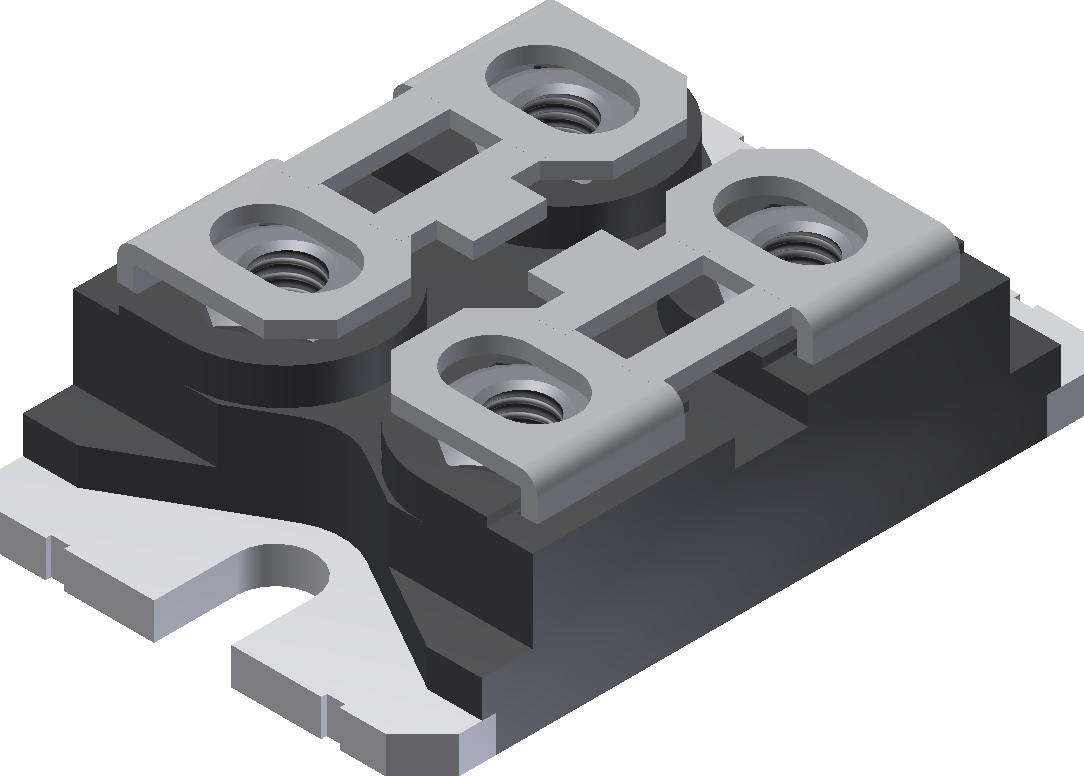

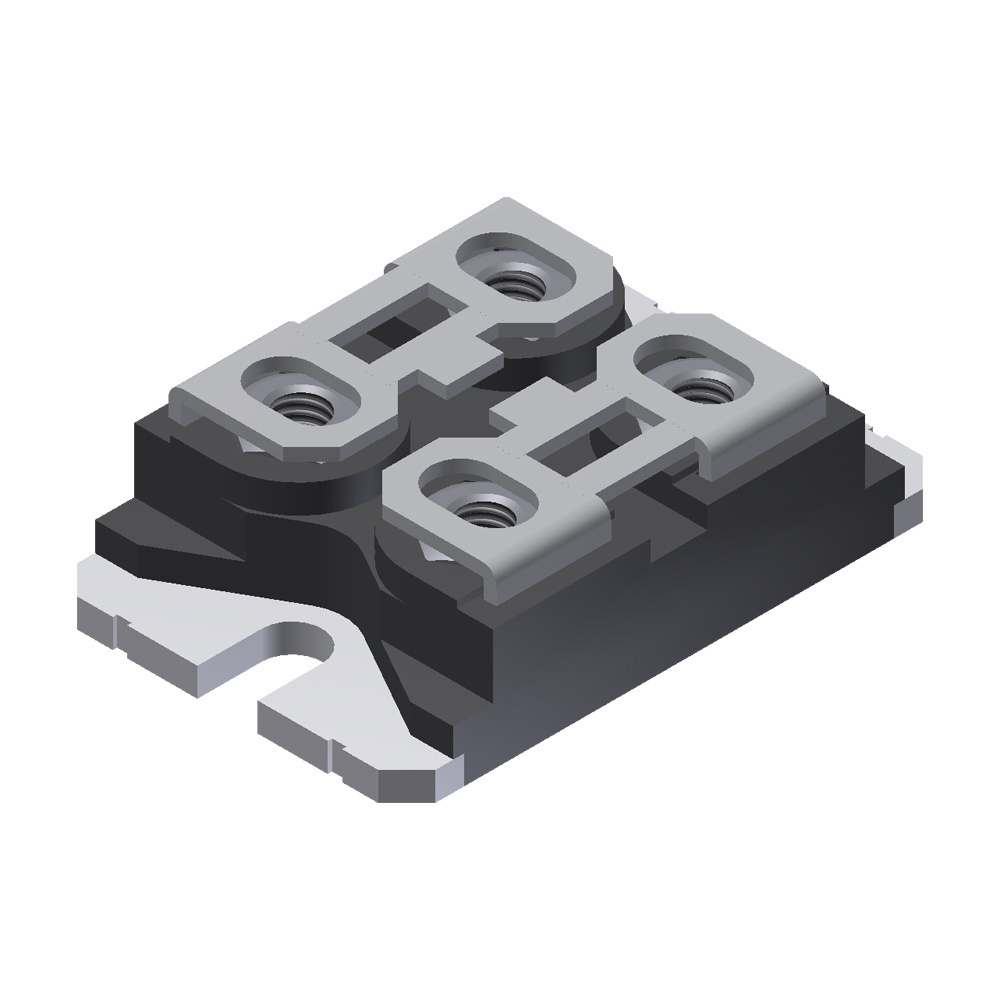

Package Type | SOT-227UI (minibloc) |
DSEK300-06A Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DSEK300-06A | Pwr Diode Disc-FRED sot-227ui(MINIBLOC) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
