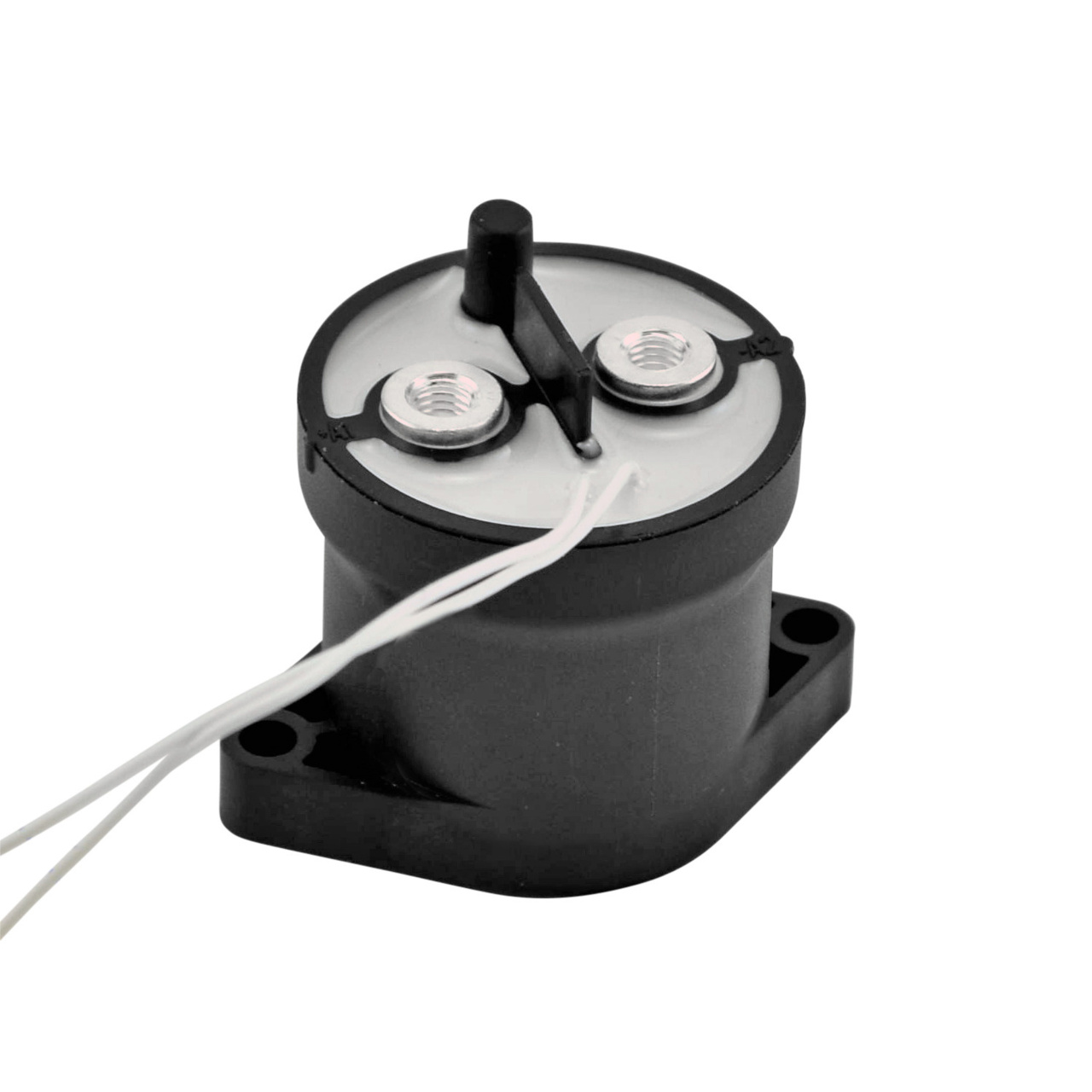

Featuring a magnetic arc blowout design and IP67 sealed, gas-filled chamber, the DCNSEV30 Series 900V 30A High-Voltage DC Contactor Relay was developed for electric vehicle (EV) and eMobility applications, such as battery power supply, charging stations, motor control, circuit insulation, and circuit protection. The 30A relay can also be used as a safety device in industrial machinery.
Utilizing polarized contacts, this high-voltage DC contactor performs optimally amidst polarized electrical loads.
The DCNSEV30 Series 30A contactor is available with a 12V dc or 24V dc coil rating.
- High-voltage (900V) DC contactor for electric vehicles (EV), eMobility applications, and industrial machinery
- 30A current rating ideally suited for pre-charge circuits or small electrical loads
- Compact structure helps reduce noise when the contactor is turned on
- Arcs between contacts dissipate within a an IP67 sealed, gas-filled chamber, allowing the relay to make or break at higher voltages
- Lightweight actuator is less impacted by gravity with no mounting orientation restrictions
- Designed and manufactured under the IATF16949 certification for Automotive Quality Systems
- Electric vehicle contactor features single-pole, single-throw (SPST), normally open (NO) circuitry
- Includes wire leads for control circuit
DCNSEV30 Parts
Link has been copied to clipboard
Filters
DCNSEV30 Applications
- Battery Electric Vehicles (BEV)
- Hybrid Electric Vehicles (HEV)
- Material Handling
- Electric Maintenance and Transport Vehicles
- Industrial
