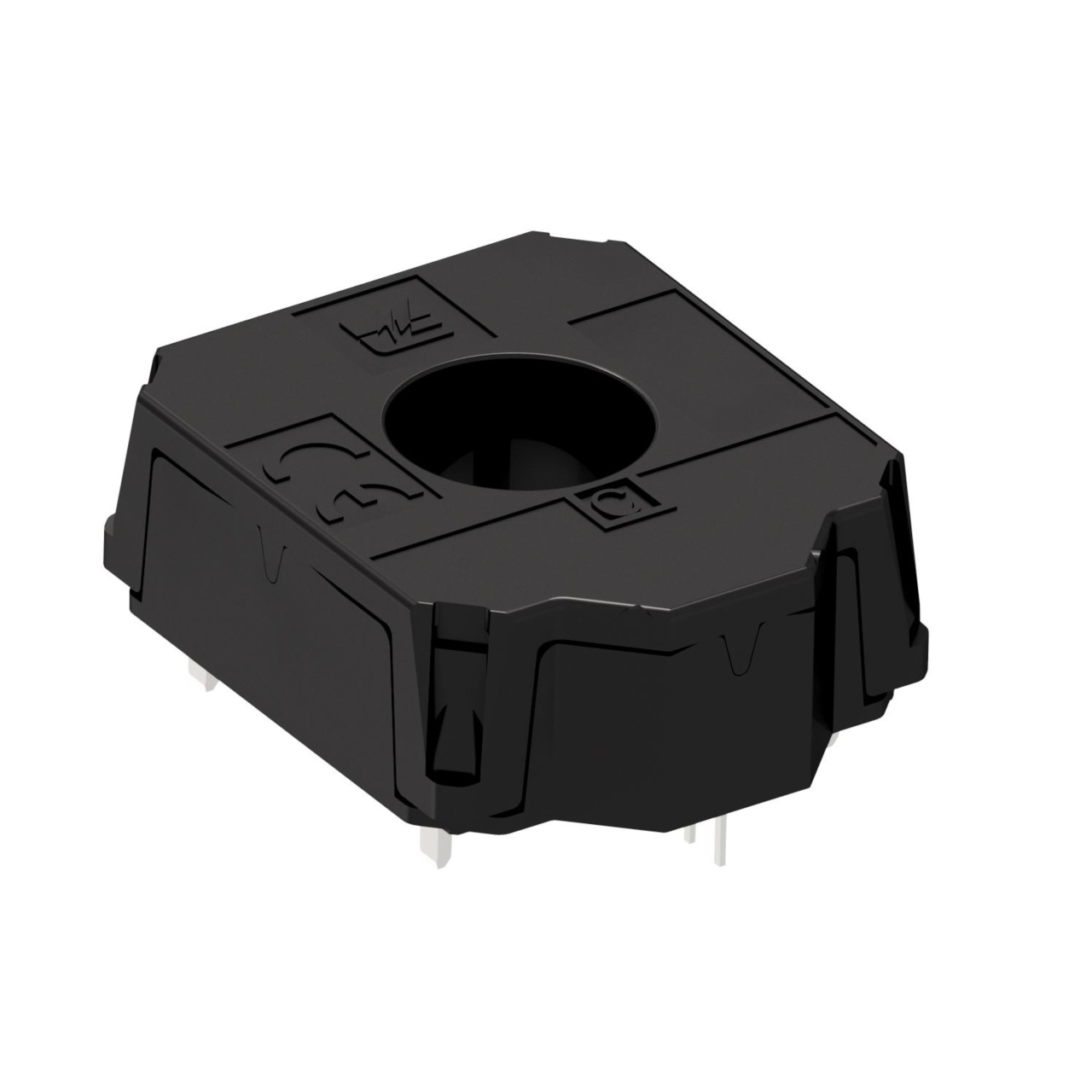

Littelfuse CH1P01xM current sensor is an open-loop Hall Effect device which provides a ratiometric output signal proportional to the magnetic flux density generated by a C-core concentrator. The sensor is offered in three configurations: full isolation sleeve, partial isolation sleeve and without isolation sleeve.
- Current measurement up to ±900 A
- Open-loop Hall effect
- +5V DC unipolar power supply
- Operating temp. range: -40°C ... +125°C
- Busbar isolated measurement
- ASIL-QM
- High sensing accuracy
- Low thermal offset drift
- Low thermal sensitivity drift
- Non-intrusive solution
CH1P01xM Applications
- Motor inverter
- DC/DC Converter
- Starter generator
- AC/DC Converter
