PS-221905-LNS

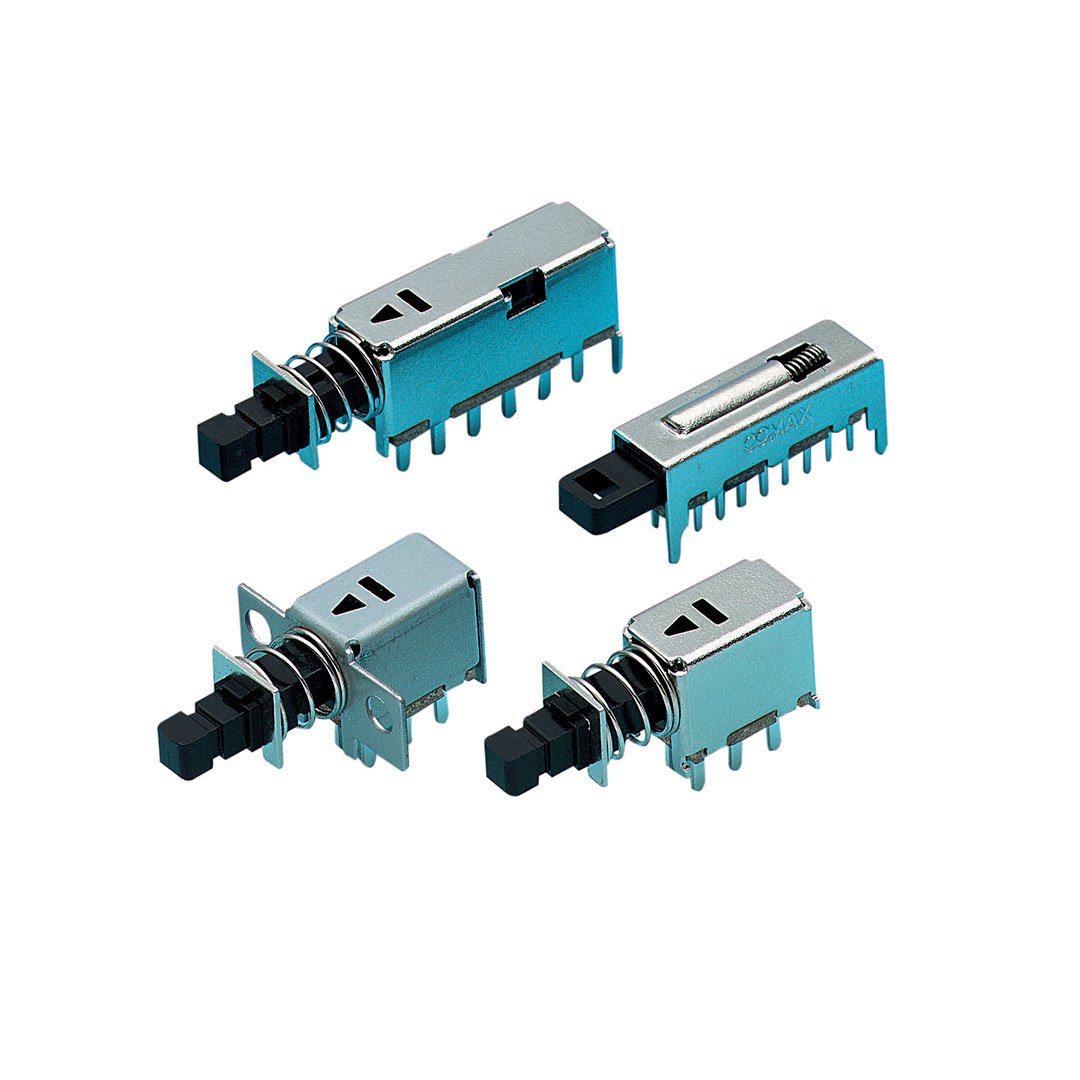

PS-221905-L NS | Series: PS
PS series Miniature Pushbutton Switches are integrated into innovative audio & visual equipment, telecommunications, industrial and automotive products by some of the world’s leading designers. The PS series are miniature switches available in momentary or latching options, as well as a broad range of style choices.
| Property | Value |
|---|---|
Circuitry | SPDT NO / NC |
Activation Type | Momentary action |
Switch Function | On-Off-On |
Rating - Maximum Current | 0.1A |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Terminals Plating | Lead free silver |
Terminals Complementary Information | THT |
Terminals Type | Thru Hole |
Illumination | Not applicable |
Washing Process - Compatibility | Not Compatible |
Operating Force | Min 1 N / Nominal 1.5 N / Max 2 N |
Seal | No |
Activation Orientation | Top actuated |
Contact Plating | Silver |
- Miniature size
- Momentary or latching options
- Broad range of products
PS-221905-LNS Applications
- Industrial
- Automotive
- Audio and visual equipment
- Telecommunications
PS-221905-LNS Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| HAPS0051 | PS-221905-L NS | View More |
