SSW115S01 R370

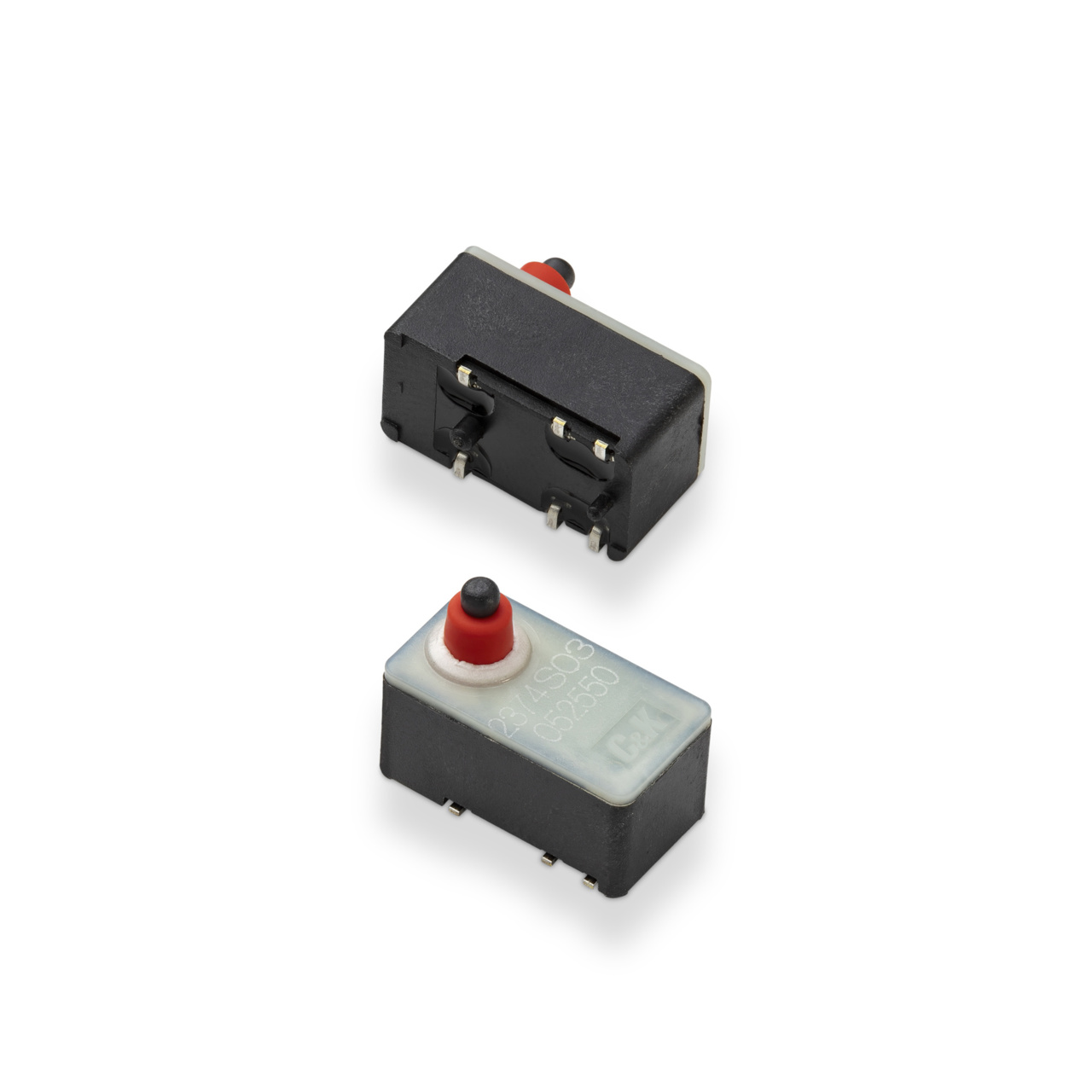

SSW115S01 R370 | Series: SSW
The SSW series offers mini size snap-acting switches engineered for automotive, ASIL related applications and safety applications
| Property | Value |
|---|---|
Circuitry | DPDT |
Activation Type | Momentary action |
Switch Function | On-Off-On |
Rating - Minimum Current | 1 mA |
Rating - Maximum Current | 20 mA |
Activation Orientation | Top and Side actuated |
Ingress Protection | IP 67 |
Terminals Type | Surface mount |
Terminals Plating | Tin |
Electrical Life Cycles | 300000 |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 5 Volt / Max 18 Volt |
Operating Force | Nominal 2 N |
Electrical Height | Nominal 11 mm |
Height | 12.2 |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
Contacts | Surface mount |
- Surface mount terminations
- IP67
- Redundant contacts
- Change over time
- Top and side actuation
- Low acoustics
SSW115S01 R370 Applications
- Automotive, ASIL related applications (electronic parking brake, by-wire functions)
SSW115S01 R370 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y15115S01FP | SSW115S01 R370 | View More |
