K8SR41G

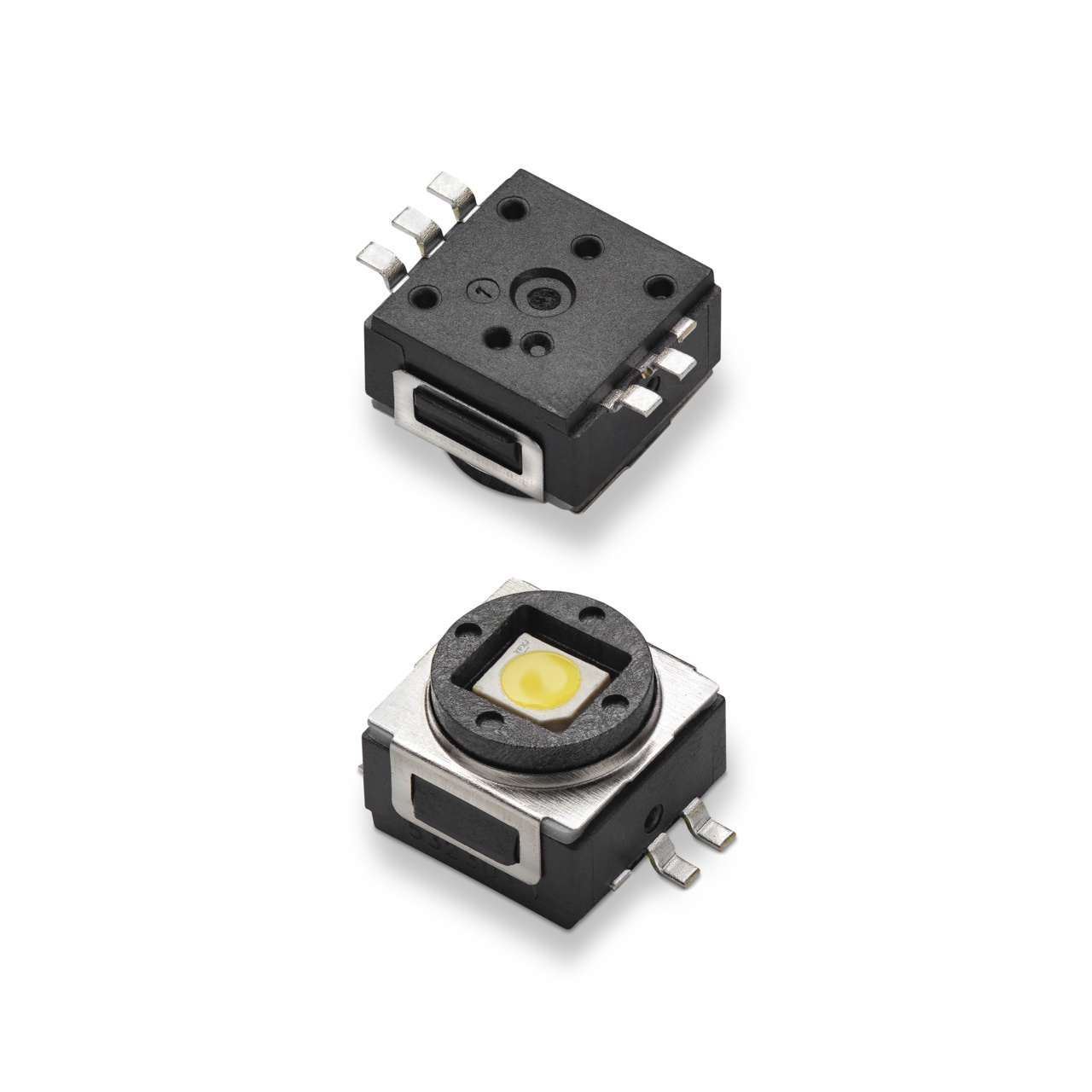

K8SR41G LFS | Series: K8
The K8 series lighted SMT tact switch with rugged LED mounting process is perfect for network, medical equipment, and automotive applications that need to last a long time while enduring the harshest conditions. The K8 combines consistent LED light output with excellent tactile feel and clear audible haptic confirmation.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Rating - Maximum Current | 50 mA |
Operating Force | Min 3 N / Nominal 4 N / Max 5 N |
Electrical Travel | Min 0.3 mm / Nominal 0.45 mm / Max 0.6 mm |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 32 Volt |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Activation Orientation | Top actuated |
Light - Color | Super Red |
Light - Typical Forward Voltage | 2.05 Volt |
Circuitry | SPST NO |
- Various LED options
- No light perturbation
- Sound haptic
- Various climatic classes
K8SR41G Applications
- Automotive
- Network equipment
- Vending machines
- Medical equipment
- Industrial controls
K8SR41G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y717411G4FP | K8SR41G LFS | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
