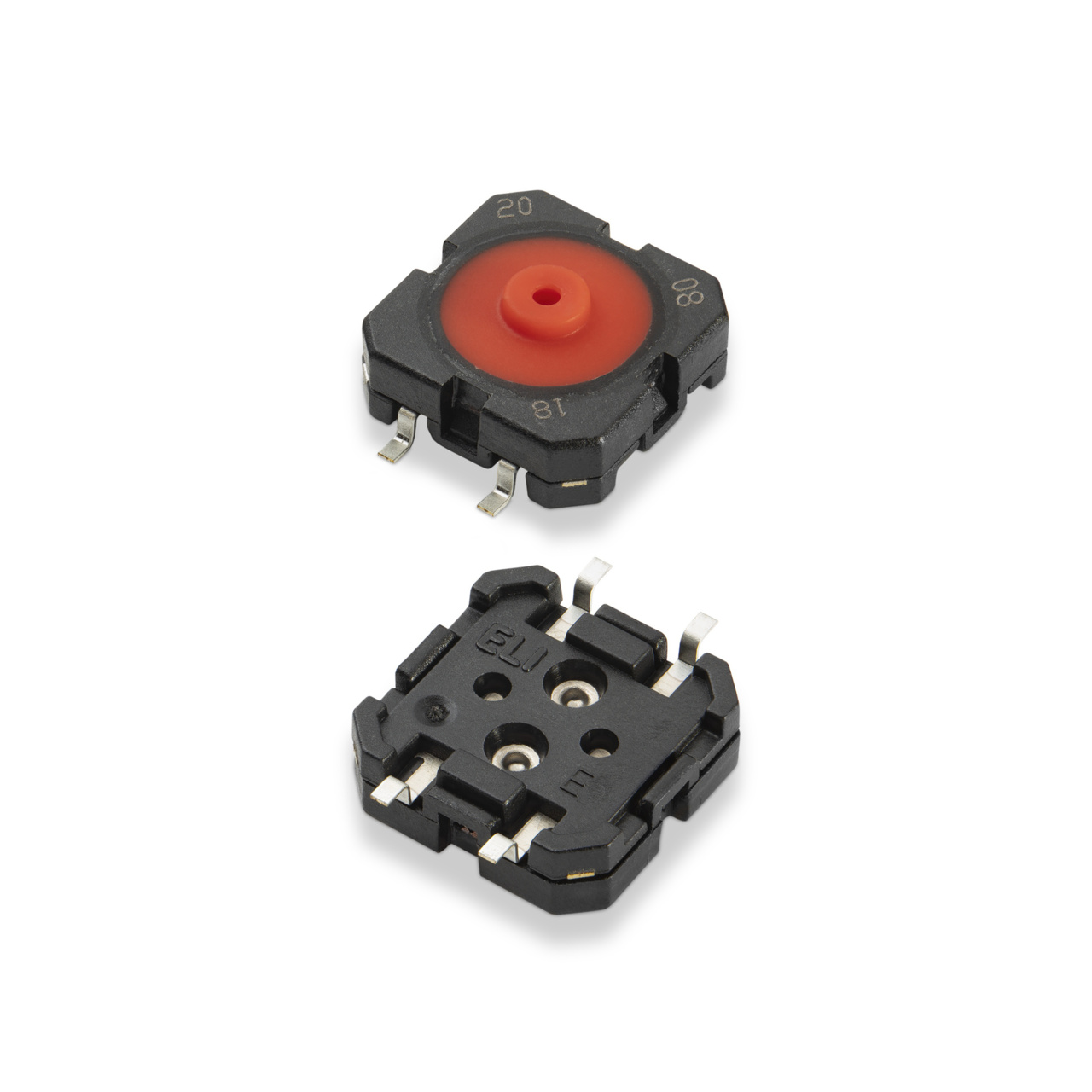

SFS12FSSMTR
SFS12FSSMTR LFS | Series: SFS
SFS, the mid-travel and soft sound tactile solution, construction with standard overall dimension 12 x 12 mm with 3.6N, 6.8N, 9.0N & 13.5N version options.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 100 mA |
Operating Force | Min 5.1 N / Nominal 6.67 N / Max 8.24 NMin 520 gf / Nominal 680 gf / Max 840 gf |
Mechanical Life Cycles | 300000 |
Electrical Life Cycles | 300000 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 35 Volt |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Construction with standard dimension 12x12 mm overall size
- Gold plating contacts
- SMT termination design
- Unique click & a sealed contact system
- 3.6N, 6.8N, 9.7N & 13.5N versions
SFS12FSSMTR Applications
- Measurement-control regulation
- Monitoring system
- Automotive (steering wheel, mid-console, window lifter)
- Navigation
- Disposable medical devices
- Patient monitoring
- Scan system
