TLSM020T3J

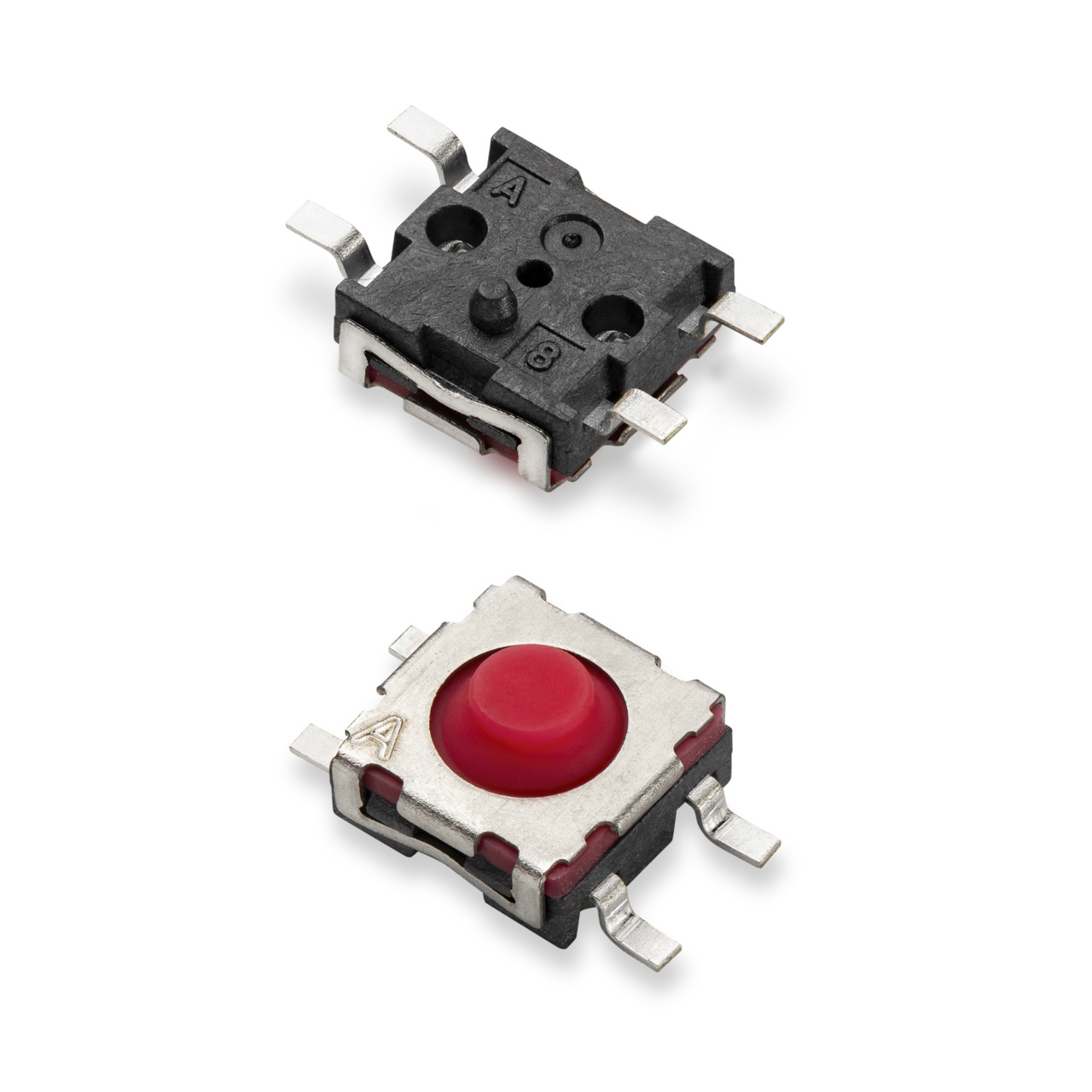

SWITCH TLSM020T3JLFS | Series: TLSM
The TLSM series of sealed tactile switches for SMT are IP54 rated, 3.45mm high Single Pole Double Throw tactile switches, featuring a soft actuator. They offer an outstanding lifespan of 2 Mio cycles and an operating force of 2N.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 10 uA |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.5 N / Nominal 2 N / Max 2.5 N |
Electrical Travel | Min 0.1 mm / Nominal 0.3 mm / Max 0.5 mm |
Ingress Protection | IP 54 |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 1 Volt / Max 16 Volt |
Mounting Type | Post |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Activation Orientation | Top actuated |
Circuitry | SPDT |
- SPDT NC-NO function
- 6.0 x 6.1 mm dimension
- Soft actuator 3.45mm high
- Long life - 2M cycles
- IP54
TLSM020T3J Applications
- Elevator button
- EV charging gun
- Industrial equipment
